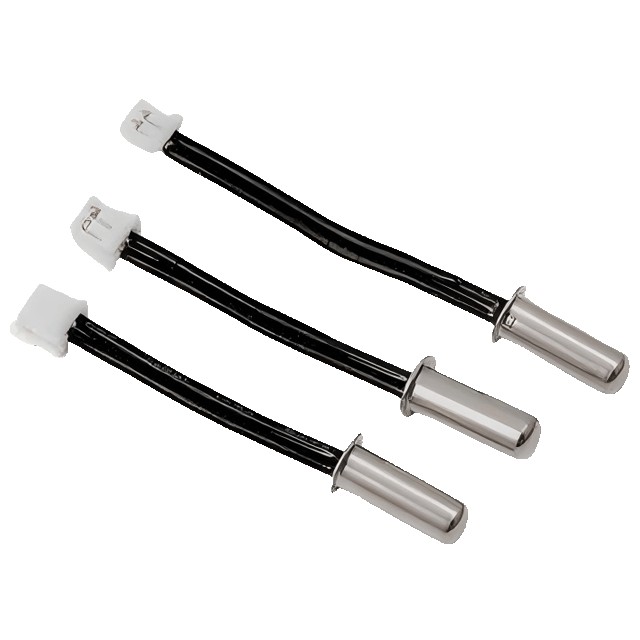

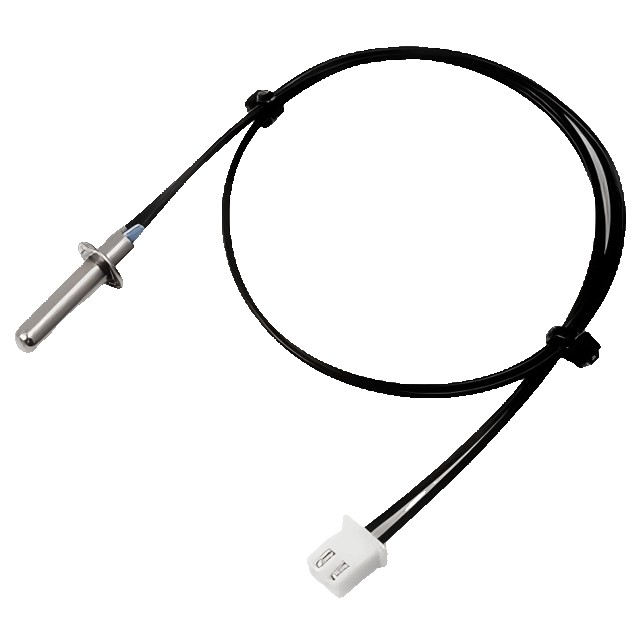

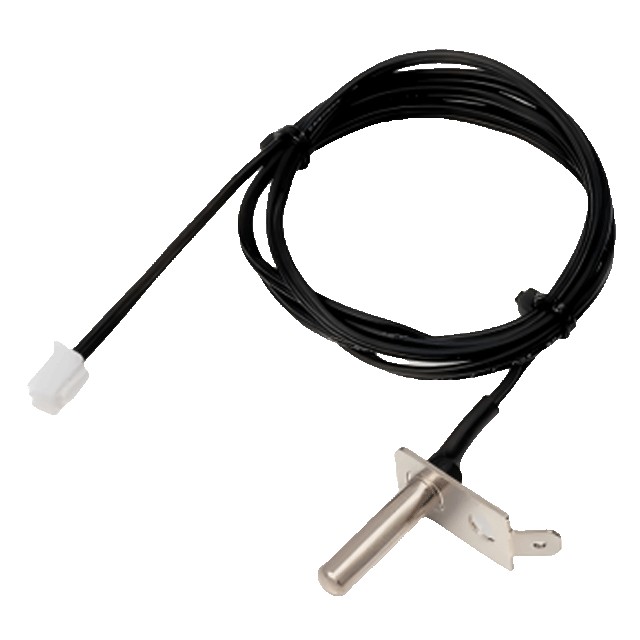

NTC temperature sensor with flange probe

Introduce

Flange-mounted structure allows stable surface installation, used in wall panels, internal cavities, and mechanical housings.

Inquiry

A^-A⁺

Parameter Inquiry

PRODUCT DESCRIPTION

1.Flange probe temperature sensor epoxy sealed type

2.Sensor category:thermal sensor

3.Fixed point installation,fixed type,diversified

4.Operating temperature range -50~150℃(can becustomized -40~250℃)

5.Thermal time constant ≤4S

6.Suitable for use at room temperature or hightemperature

7.Waterproof rating:Ip66

8.Withstand voltage AC:1800V 30S (air insulationvoltage*2)

SCOPE OF APPLICATION

Electric boilers,water heaters,electric faucets,electricheating stoves,curing ovens,wall-hung boilers,disinfection cabinets,air purifiers,large equipmentand outdoor environmental engineering temperaturemeasurement points,etc.
