Varistor: A Key Component in Circuit Protection

Introduction to Metal Oxide Varistors (MOVs)

    A Metal Oxide Varistor (MOV) is a nonlinear semiconductor device based on metal oxide materials, typically zinc oxide (ZnO). It responds rapidly to abnormally high voltages by undergoing a sudden change in resistance, thereby clamping voltage and absorbing surge energy. When the applied voltage is below the breakdown threshold, the MOV exhibits a high resistance in the megaohm range with negligible leakage current. When the voltage exceeds the breakdown threshold, the resistance drops sharply to the ohmic level, allowing the MOV to conduct large surge currents and protect downstream circuitry from overvoltage damage. Commonly used MOV part numbers include LCRR7D391K, LCRR10D561K, and LCRR20D471K.

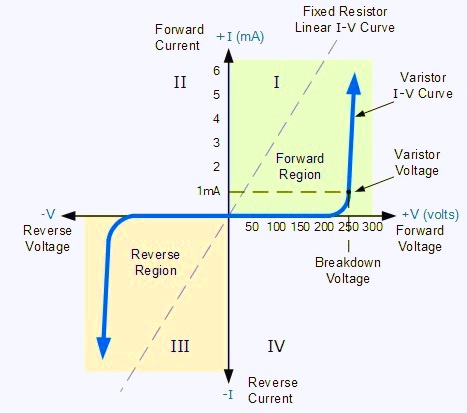

Operating Principle and V-I Characteristics

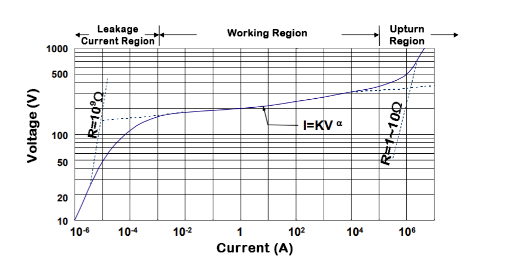

The voltage-current (V-I) curve of an MOV is typically divided into three regions:

 1. Leakage Current Region

    Also known as the pre-breakdown region. In this region, the voltage across the MOV is below its clamping voltage. Conduction is governed by thermally excited electrons, and the MOV behaves like an insulator with resistance over 10 MΩ (Rb ≫ Rg). The current is in the microampere range, and the MOV appears as an open circuit—this is its normal operating state.

 2. Breakdown (Working) Region

    Also referred to as the clamping region. When a voltage above the clamping level is applied, conduction occurs via a tunneling mechanism (Rb ≈ Rg). The MOV exhibits strong nonlinear conductivity following the power law:I = C × V^α
  Where:

I is the current through the MOV

V is the voltage across the MOV

C is a constant depending on process parameters

α is the nonlinearity coefficient (typically between 30 and 50), a key indicator of MOV quality

  In this region, small changes in voltage cause large variations in current, enabling the MOV to effectively suppress voltage surges and absorb or divert the associated energy.

 3. Upturn Region

    When surge current exceeds ~100 A/cm², the V-I characteristics are dominated by the resistance of ZnO grains. The MOV behaves linearly:I = V / Rg
    In this region, the MOV may begin to degrade and lose its overvoltage protection capability.

Response Time and Key Parameters

    The typical response time of an MOV is 20–25 ns, depending on its packaging and material technology. Though slower than a TVS diode (<1 ns), it is effective enough for power and motor systems. When properly selected, MOVs provide excellent transient overvoltage suppression, protecting circuits from damage.

Main Functions of MOVs

  Overvoltage Protection:
    Clamps voltage spikes from lightning, grid fluctuations, or switching actions, preventing damage to sensitive components like ICs and sensors.

  Surge Suppression:
    Used at power inputs or communication lines to suppress standard 8/20 μs waveform surges. Surge current capacity ranges from 1 to 10 kA depending on MOV diameter (e.g., 7D, 10D, 14D, 20D) and process.

  Energy Dissipation:
    Absorbs surge energy and converts it to heat via internal grain boundary conduction.

  Bidirectional Protection:
    MOVs are non-polarized and can respond symmetrically to both positive and negative surges, ideal for AC/DC protection.

Application Scenarios

   1. Power Systems

    AC Input: Installed across L/N and PE lines for lightning surge protection

    DC Output: Protects switching regulators from transients caused by load variations or short circuits

   2. Electronic Devices

    Communication Equipment: Absorbs common-mode and differential-mode noise in RS-485, Ethernet, etc.

    Consumer Electronics: Integrated into chargers and adapters to protect lithium batteries and main controllers

   3. Industrial Control Systems

    Motor Drives: Suppresses voltage spikes at VFD inputs, prolonging equipment lifespan

    Sensor Protection: Shields against ESD and EMP interference in industrial environments

   4. New Energy Systems

    Photovoltaic Systems: Absorbs lightning surges on inverter DC sides, compliant with UL 1449

    Electric Vehicles: Enhances EMC by protecting charging stations and battery management systems

Conclusion

    With their excellent cost-performance ratio, high surge capacity, and broad compatibility, MOVs play a vital role in surge protection across electronics, power systems, automotive, and renewable energy sectors. By selecting the right MOV and combining it with other devices like TVS diodes and gas discharge tubes (GDTs), overall system immunity to lightning and overvoltage threats can be significantly enhanced.
