Varistor: A Key Component in Circuit Protection
Introduction to Metal Oxide Va...
Designed to provide fast and reliable overvoltage protection for electronic devices, the 05D series varistors effectively absorb transient voltage surges, ensuring stable operation of household appliances, communication, and smart devices under variable power grid conditions.

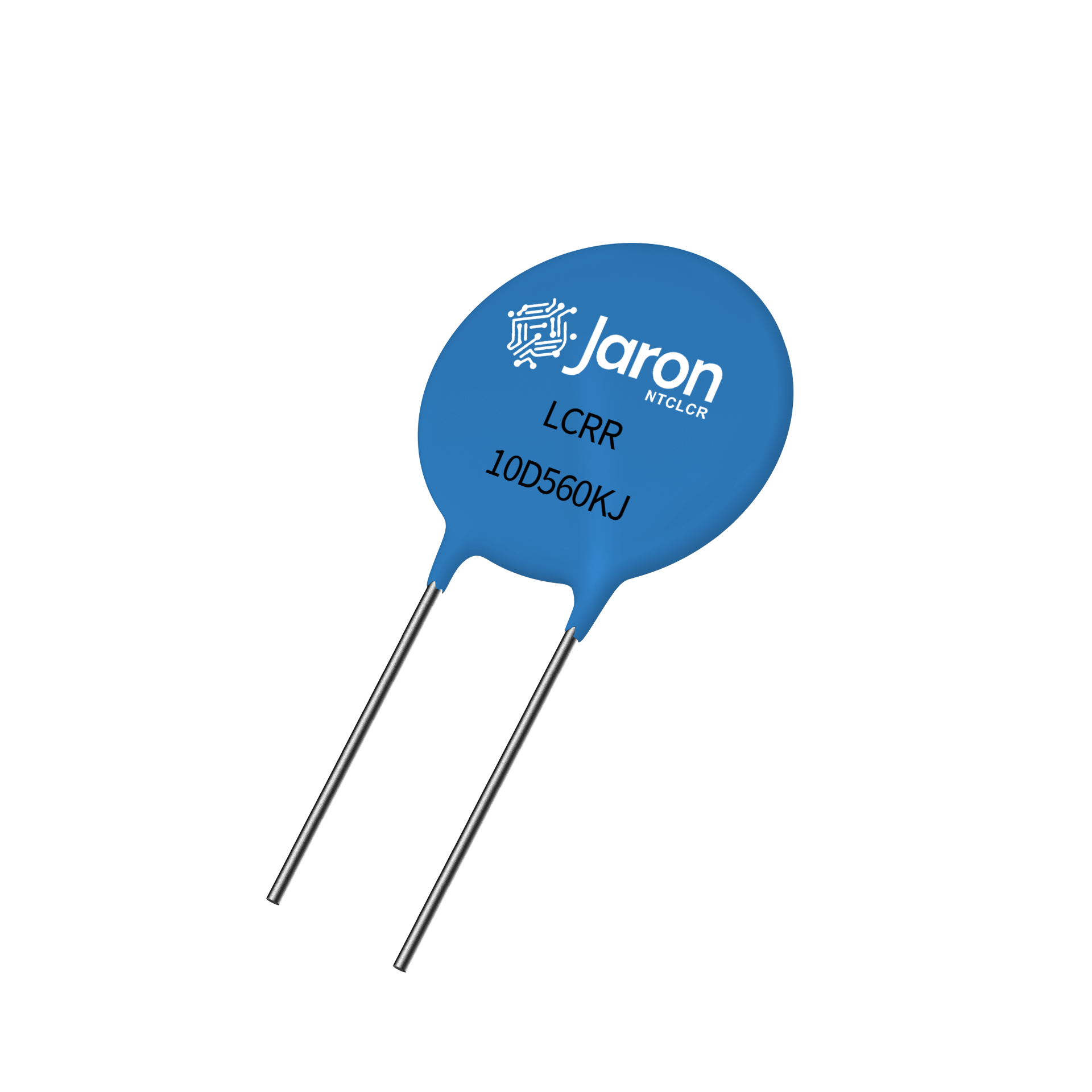

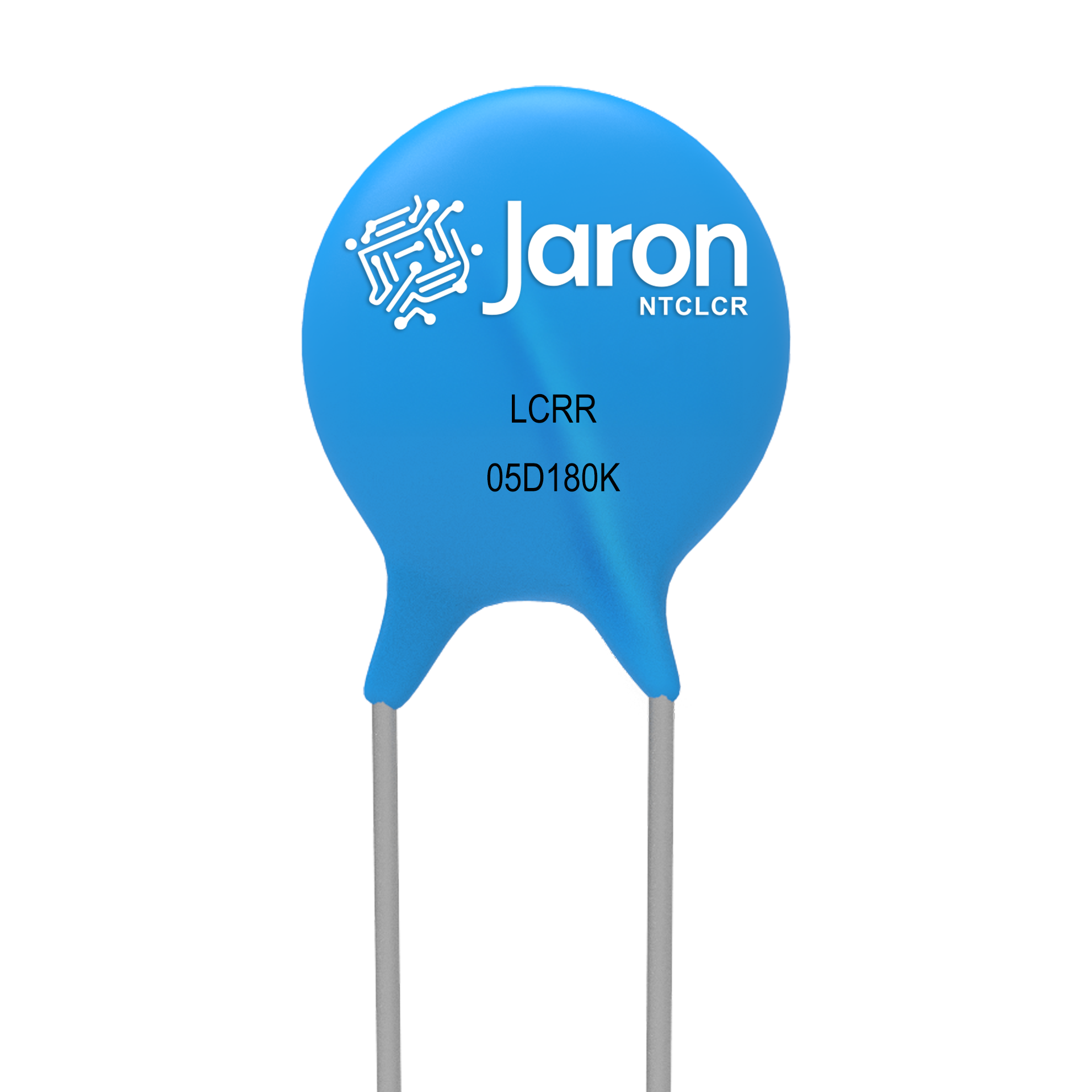

LCRR05D***K Series
| LCRR Part Number | Maximum allowable voltage | Varistor Voltage |
Maximum Clamping Voltage | Withstanding Surge Current | Maximum Energy (10/1000μs) |
Rated Power | Typical Capacitance (Reference) |
|||
| LCRRStandard | VA (V) | VDC (V) | V1mA (V) | IP (A) | VC (V) | I(A) Standard | (J) Standard | (W) | @1KHZ (pf) | |
| 1 Time | 2 Times | |||||||||
| LCRR05D180K | 11 | 14 | 18(15~21.6) | 1 | 40 | 100 | 50 | 0.4 | 0.01 | 1400 |
| LCRR05D220K | 14 | 18 | 22(19.5~26) | 1 | 48 | 100 | 50 | 0.5 | 0.01 | 1150 |
| LCRR05D270K | 17 | 22 | 27(24~30) | 1 | 60 | 100 | 50 | 0.6 | 0.01 | 930 |
| LCRR05D330K | 20 | 26 | 33(29.5~36.5) | 1 | 73 | 100 | 50 | 0.8 | 0.01 | 760 |
| LCRR05D390K | 25 | 31 | 39(35~43) | 1 | 80 | 100 | 50 | 0.9 | 0.01 | 640 |
| LCRR05D470K | 30 | 38 | 47(42~54) | 1 | 104 | 100 | 50 | 1.1 | 0.01 | 530 |
| LCRR05D560K | 35 | 45 | 56(50~62) | 1 | 123 | 100 | 50 | 1.3 | 0.01 | 450 |
| LCRR05D680K | 40 | 56 | 68(61~75) | 1 | 150 | 100 | 50 | 1.6 | 0.01 | 370 |
| LCRR05D820K | 50 | 65 | 82(74~90) | 5 | 145 | 400 | 200 | 2.5 | 0.1 | 300 |
| LCRR05D101K | 60 | 85 | 100(90~110) | 5 | 177 | 400 | 200 | 3 | 0.1 | 250 |
| LCRR05D121K | 75 | 100 | 120(108~132) | 5 | 210 | 400 | 200 | 4 | 0.1 | 210 |
| LCRR05D151K | 95 | 125 | 150(135~165) | 5 | 260 | 400 | 200 | 4.1 | 0.1 | 165 |
| LCRR05D181K | 115 | 150 | 180(162~198) | 5 | 320 | 400 | 200 | 4.9 | 0.1 | 140 |
| LCRR05D201K | 130 | 170 | 200(180~220) | 5 | 355 | 400 | 200 | 6.5 | 0.1 | 125 |
| LCRR05D221K | 140 | 180 | 220(198~242) | 5 | 380 | 400 | 200 | 7.5 | 0.1 | 110 |
| LCRR05D241K | 150 | 200 | 240(216~264) | 5 | 415 | 400 | 200 | 8 | 0.1 | 100 |
| LCRR05D271K | 175 | 225 | 270(243~297) | 5 | 475 | 400 | 200 | 8.5 | 0.1 | 95 |
| LCRR05D301K | 190 | 250 | 300(270~330) | 5 | 520 | 400 | 200 | 9 | 0.1 | 85 |
| LCRR05D331K | 210 | 275 | 330(297~363) | 5 | 570 | 400 | 200 | 9.5 | 0.1 | 75 |
| LCRR05D361K | 230 | 300 | 360(324~396) | 5 | 620 | 400 | 200 | 10 | 0.1 | 70 |
| LCRR05D391K | 250 | 320 | 390(351~429) | 5 | 675 | 400 | 200 | 12 | 0.1 | 65 |
| LCRR05D431K | 275 | 350 | 430(387~473) | 5 | 745 | 400 | 200 | 13 | 0.1 | 60 |
| LCRR05D471K | 300 | 385 | 470(423~517) | 5 | 810 | 400 | 200 | 15 | 0.1 | 55 |
| LCRR05D511K | 320 | 415 | 510(459~561) | 5 | 845 | 400 | 200 | 16 | 0.1 | 50 |
| LCRR05D561K | 350 | 460 | 560(504~616) | 5 | 920 | 400 | 200 | 16 | 0.1 | 50 |
| LCRR05D621K | 385 | 505 | 620(558~682) | 5 | 1025 | 400 | 200 | 21 | 0.1 | 40 |
| LCRR05D681K | 420 | 560 | 680(612~748) | 5 | 1120 | 400 | 200 | 21 | 0.1 | 35 |
| LCRR05D751K | 460 | 615 | 750(675~825) | 5 | 1240 | 400 | 200 | 22.4 | 0.1 | 30 |
LCRR05D***KJ Series
| Part Number | Maximum allowable voltage |
Varistor Voltage |
Maximum Clamping Voltage |
Withstanding Surge Current |
Maximum Energy (10/1000μs) |
Rated Power | Typical Capacitance (Reference) |
|||
| LCRR High Surge | VAC (V) | VDC (V) | V1mA (V) | IP (A) | VC (V) | I(A) High Surge | (J) High Surge | (W) | @1KHZ (pf) | |
| 1 Time | 2 Times | |||||||||
| LCRR05D180KJ | 11 | 14 | 18(15~21.6) | 1 | 40 | 250 | 125 | 0.6 | 0.01 | 1400 |
| LCRR05D220KJ | 14 | 18 | 22(19.5~26) | 1 | 48 | 250 | 125 | 0.7 | 0.01 | 1150 |
| LCRR05D270KJ | 17 | 22 | 27(24~30) | 1 | 60 | 250 | 125 | 0.9 | 0.01 | 930 |
| LCRR05D330KJ | 20 | 26 | 33(29.5~36.5) | 1 | 73 | 250 | 125 | 1.1 | 0.01 | 760 |
| LCRR05D390KJ | 25 | 31 | 39(35~43) | 1 | 80 | 250 | 125 | 1.2 | 0.01 | 640 |
| LCRR05D470KJ | 30 | 38 | 47(42~54) | 1 | 104 | 250 | 125 | 1.5 | 0.01 | 530 |
| LCRR05D560KJ | 35 | 45 | 56(50~62) | 1 | 123 | 250 | 125 | 1.8 | 0.01 | 450 |
| LCRR05D680KJ | 40 | 56 | 68(61~75) | 1 | 150 | 250 | 125 | 2.2 | 0.01 | 370 |
| LCRR05D820KJ | 50 | 65 | 82(74~90) | 5 | 145 | 800 | 600 | 4 | 0.1 | 300 |
| LCRR05D101KJ | 60 | 85 | 100(90~110) | 5 | 177 | 800 | 600 | 4.1 | 0.1 | 250 |
| LCRR05D121KJ | 75 | 100 | 120(108~132) | 5 | 210 | 800 | 600 | 4.9 | 0.1 | 210 |
| LCRR05D151KJ | 95 | 125 | 150(135~165) | 5 | 260 | 800 | 600 | 6.5 | 0.1 | 165 |
| LCRR05D181KJ | 115 | 150 | 180(162~198) | 5 | 320 | 800 | 600 | 7.5 | 0.1 | 140 |
| LCRR05D201KJ | 130 | 170 | 200(180~220) | 5 | 355 | 800 | 600 | 8.5 | 0.1 | 125 |
| LCRR05D221KJ | 140 | 180 | 220(198~242) | 5 | 380 | 800 | 600 | 9 | 0.1 | 110 |
| LCRR05D241KJ | 150 | 200 | 240(216~264) | 5 | 415 | 800 | 600 | 10.5 | 0.1 | 100 |
| LCRR05D271KJ | 175 | 225 | 270(243~297) | 5 | 475 | 800 | 600 | 11 | 0.1 | 95 |
| LCRR05D301KJ | 190 | 250 | 300(270~330) | 5 | 520 | 800 | 600 | 12 | 0.1 | 85 |
| LCRR05D331KJ | 210 | 275 | 330(297~363) | 5 | 570 | 800 | 600 | 13 | 0.1 | 75 |
| LCRR05D361KJ | 230 | 300 | 360(324~396) | 5 | 620 | 800 | 600 | 16 | 0.1 | 70 |
| LCRR05D391KJ | 250 | 320 | 390(351~429) | 5 | 675 | 800 | 600 | 17 | 0.1 | 65 |
| LCRR05D431KJ | 275 | 350 | 430(387~473) | 5 | 745 | 800 | 600 | 20 | 0.1 | 60 |
| LCRR05D471KJ | 300 | 385 | 470(423~517) | 5 | 810 | 800 | 600 | 21 | 0.1 | 55 |
| LCRR05D511KJ | 320 | 415 | 510(459~561) | 5 | 845 | 800 | 600 | 22.5 | 0.1 | 50 |
| LCRR05D561KJ | 350 | 460 | 560(504~616) | 5 | 920 | 800 | 600 | 24 | 0.1 | 50 |
| LCRR05D621KJ | 385 | 505 | 620(558~682) | 5 | 1025 | 800 | 600 | 25 | 0.1 | 40 |
| LCRR05D681KJ | 420 | 560 | 680(612~748) | 5 | 1120 | 800 | 600 | 29 | 0.1 | 35 |
| LCRR05D751KJ | 460 | 615 | 750(675~825) | 5 | 1240 | 800 | 600 | 32 | 0.1 | 30 |
