LCRRSMD2220 Series

Introduce

Offers excellent surge handling capability and stability. The 2220 series is suited for industrial electronics, meter equipment, and high-power module protection.

Inquiry

A^-A⁺

Parameter Inquiry

LCRRSMD2220 Series

Part Number		Working Voltage		Breakdown Voltage		Peak Current	Clamping Voltage		Surge Voltage(V)
		AC	DC	@ 1mA DC		8/20uS	8/20uS
		VAC	V DC	VB		Ip	A	V
2220	JR2220-240G/H	14	18	24	21.6-26.4	800A/1200A	1-10	38	2000V & 2500V
	JR2220-270G/H	17	22	27	24.3-29.7	800A/1200A	1-10	44
	JR2220-300G/H	18	24	30	27.2-33.0	800A/1200A	1-10	48
	JR2220-330G/H	20	26	33	29.7-36.3	800A/1200A	1-10	54

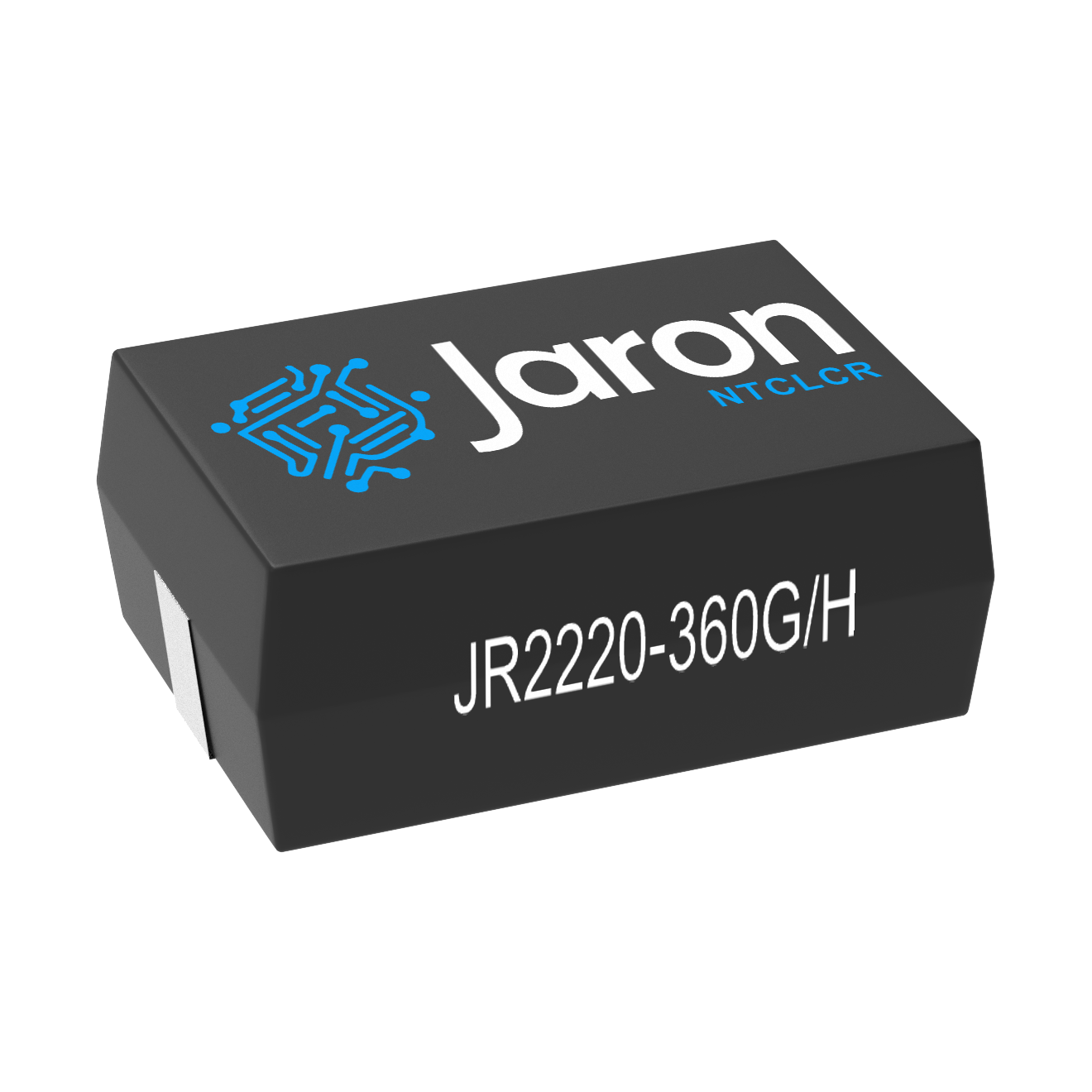

	JR2220-360G/H	22	28	36	32.7-39.6	800A/1200A	1-10	59
	JR2220-390G/H	25	30	39	35.1-42.9	800A/1200A	1-10	65
	JR2220-420G/H	26	33	42	38.1-46.2	800A/1200A	1-10	72
	JR2220-470G/H	30	38	47	42.3-51.7	800A/1200A	1-10	77
	JR2220-560G/H	35	45	56	50.4-61.6	800A/1200A	1-10	90
	JR2220-680G/H	40	56	68	61.2-74.8	800A/1200A	1-10	110
	JR2220-760G/H	45	60	76	69.1-83.6	800A/1200A	1-10	126
	JR2220-820G/H	50	65	82	73.8-90.2	800A/1200A	1-10	135
	JR2220-101G/H	60	85	100	90-110	800A/1200A	1-10	165

LCRRSMD2220 High Voltage Series

Part Number		Working Voltage		Breakdown Voltage		Peak Current	Clamping Voltage		Surge Voltage(V)
		AC	DC	@ 1mA DC		8/20uS	8/20uS
		VAC	V DC	VB		Ip	A	V
2220 High Voltage	JR2220-201G	130	170	200	185-225	500A	5-10	340	1000V
	JR2220-221G	140	180	220	198-242	500A	5-10	360
	JR2220-241G	150	200	240	216-264	500A	5-10	395
	JR2220-271G	175	225	270	243-297	500A	5-10	455
	JR2220-391G	250	320	270	351-429	500A	5-10	650
	JR2220-431G	275	350	430	387-473	500A	5-10	710
	JR2220-471G	300	385	470	423-517	500A	5-10	775
	JR2220-511G	320	415	510	459-561	400A	5-10	845
	JR2220-221H	140	180	220	198-242	800A	5-10	360	2000V
	JR2220-241H	150	200	240	216-264	1000A	5-10	395
	JR2220-271H	175	225	270	243-297	1000A	5-10	455
	JR2220-391H	250	320	390	351-429	1000A	5-10	650
	JR2220-431H	275	350	430	387-473	1000A	5-10	710
	JR2220-471H	300	385	470	423-517	1000A	5-10	775
	JR2220-511H	320	415	510	459-561	1000A	5-10	845
	JR2220-561H	350	460	620	558-682	1000A	5-10	920
	JR2220-391H152	250	320	390	351-429	1500A	5-10	650	3000V
	JR2220-391H202	250	320	390	351-429	2000A	5-10	650	4000V
	JR2220-471H152	300	385	470	423-517	1500A	5-10	710	3000V
	JR2220-471H202	300	385	470	423-517	2000A	5-10	710	4000V
