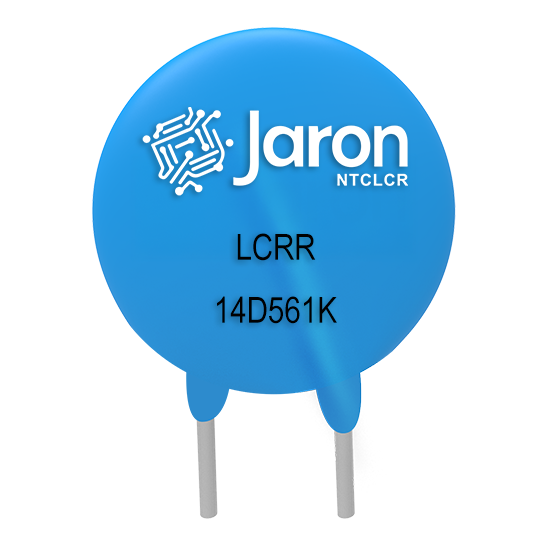

LCRR14D Series

Introduce

Offers stable protection for higher power systems. With increased energy absorption capacity, the 14D series is ideal for use in inverters, motor drives, and industrial control systems operating in complex electrical environments.

Inquiry

A^-A⁺

Parameter Inquiry

LCRR14D***K Series

Part Number	Maximum allowable voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current		Maximum Energy (10/1000μs)	Rated Power	Typical Capacitance (Reference)


LCRRStandard	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	I(A) Standard		(J) Standard	(W)	@1KHZ (pf)
LCRRStandard	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	1 Time	2 Times	(J) Standard	(W)	@1KHZ (pf)
LCRR14D180K	11	14	18(15~21.6)	10	36	1000	500	4	0.1	11100
LCRR14D220K	14	18	22(19.5~26)	10	43	1000	500	5	0.1	9100
LCRR14D270K	17	22	27(24~30)	10	53	1000	500	6	0.1	7400
LCRR14D330K	20	26	33(29.5~36.5)	10	66	1000	500	7.5	0.1	6100
LCRR14D390K	25	31	39(35~43)	10	77	1000	500	8.6	0.1	5100
LCRR14D470K	30	38	47(42~54)	10	93	1000	500	10	0.1	4300
LCRR14D560K	35	45	56(50~62)	10	100	1000	500	11	0.1	3600
LCRR14D680K	40	56	68(61~75)	10	135	1000	500	14	0.1	2900
LCRR14D820K	50	65	82(74~90)	50	135	4500	2500	22	0.6	2400
LCRR14D101K	60	85	100(90~110)	50	165	4500	2500	28	0.6	2000
LCRR14D121K	75	100	120(108~132)	50	200	4500	2500	32	0.6	1700
LCRR14D151K	95	125	150(135~165)	50	250	4500	2500	40	0.6	1300
LCRR14D181K	115	150	180(162~198)	50	300	4500	2500	50	0.6	1100
LCRR14D201K	130	170	200(180~220)	50	340	4500	2500	57	0.6	1000
LCRR14D221K	140	180	220(198~242)	50	360	4500	2500	60	0.6	900
LCRR14D241K	150	200	240(216~264)	50	395	4500	2500	63	0.6	830
LCRR14D271K	175	225	270(243~297)	50	455	4500	2500	70	0.6	740
LCRR14D301K	190	250	300(270~330)	50	500	4500	2500	77	0.6	670
LCRR14D331K	210	275	330(297~363)	50	550	4500	2500	85	0.6	610
LCRR14D361K	230	300	360(324~396)	50	595	4500	2500	93	0.6	560
LCRR14D391K	250	320	390(351~429)	50	650	4500	2500	100	0.6	510
LCRR14D431K	275	350	430(387~473	50	710	4500	2500	115	0.6	460
LCRR14D471K	300	385	470(423~517)	50	775	4500	2500	125	0.6	430
LCRR14D511K	320	415	510(459~561)	50	845	4500	2500	125	0.6	390
LCRR14D561K	350	460	560(504~616)	50	925	4500	2500	125	0.6	360
LCRR14D621K	385	505	620(558~682)	50	1025	4500	2500	125	0.6	320
LCRR14D681K	420	560	680(612~748)	50	1120	4500	2500	130	0.6	290
LCRR14D751K	460	615	750(675~825)	50	1240	4500	2500	143	0.6	270
LCRR14D781K	485	640	780(702~858)	50	1290	4500	2500	148	0.6	260
LCRR14D821K	510	670	820(738~902)	50	1355	4500	2500	157	0.6	240
LCRR14D911K	550	745	910(819~1001)	50	1500	4500	2500	175	0.6	220
LCRR14D102K	625	825	1000(900~1100)	50	1650	4500	2500	190	0.6	200
LCRR14D112K	680	895	1100(990~1210)	50	1814	4500	2500	213	0.6	180
LCRR14D122K	750	990	1200(1080~1320)	50	1980	4500	2500	213	0.6	150
LCRR14D182K	1000	1465	1800(1620~1980)	50	2970	4500	2500	250	0.6	130

LCRR14D***KJ Series

Part Number	Maximum allowable voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current		Maximum Energy (10/1000μs)	Rated Power	Typical Capacitance (Reference)


LCRR High Surge	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	I(A) High Surge		(J) High Surge	(W)	@1KHZ (pf)
LCRR High Surge	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	1 Time	2 Times	(J) High Surge	(W)	@1KHZ (pf)
LCRR14D180KJ	11	14	18(15~21.6)	10	36	2000	1000	7	0.1	11100
LCRR14D220KJ	14	18	22(19.5~26)	10	43	2000	1000	8	0.1	9100
LCRR14D270KJ	17	22	27(24~30)	10	53	2000	1000	10	0.1	7400
LCRR14D330KJ	20	26	33(29.5~36.5)	10	66	2000	1000	12	0.1	6100
LCRR14D390KJ	25	31	39(35~43)	10	77	2000	1000	13	0.1	5100
LCRR14D470KJ	30	38	47(42~54)	10	93	2000	1000	17	0.1	4300
LCRR14D560KJ	35	45	56(50~62)	10	100	2000	1000	20	0.1	3600
LCRR14D680KJ	40	56	68(61~75)	10	135	2000	1000	24	0.1	2900
LCRR14D820KJ	50	65	82(74~90)	50	135	6000	5000	27	0.6	2400
LCRR14D101KJ	60	85	100(90~110)	50	165	6000	5000	33	0.6	2000
LCRR14D121KJ	75	100	120(108~132)	50	200	6000	5000	40	0.6	1700
LCRR14D151KJ	95	125	150(135~165)	50	250	6000	5000	53	0.6	1300
LCRR14D181KJ	115	150	180(162~198)	50	300	6000	5000	60	0.6	1100
LCRR14D201KJ	130	170	200(180~220)	50	340	6000	5000	70	0.6	1000
LCRR14D221KJ	140	180	220(198~242)	50	360	6000	5000	78	0.6	900
LCRR14D241KJ	150	200	240(216~264)	50	395	6000	5000	84	0.6	830
LCRR14D271KJ	175	225	270(243~297)	50	455	6000	5000	99	0.6	740
LCRR14D301KJ	190	250	300(270~330)	50	500	6000	5000	108	0.6	670
LCRR14D331KJ	210	275	330(297~363)	50	550	6000	5000	115	0.6	610
LCRR14D361KJ	230	300	360(324~396)	50	595	6000	5000	130	0.6	560
LCRR14D391KJ	250	320	390(351~429)	50	650	6000	5000	140	0.6	510
LCRR14D431KJ	275	350	430(387~473	50	710	6000	5000	155	0.6	460
LCRR14D471KJ	300	385	470(423~517)	50	775	6000	5000	175	0.6	430
LCRR14D511KJ	320	415	510(459~561)	50	845	6000	5000	180	0.6	390
LCRR14D561KJ	350	460	560(504~616)	50	925	6000	5000	185	0.6	360
LCRR14D621KJ	385	505	620(558~682)	50	1025	6000	5000	190	0.6	320
LCRR14D681KJ	420	560	680(612~748)	50	1120	6000	5000	200	0.6	290
LCRR14D751KJ	460	615	750(675~825)	50	1240	6000	5000	210	0.6	270
LCRR14D781KJ	485	640	780(702~858)	50	1290	6000	5000	220	0.6	260
LCRR14D821KJ	510	670	820(738~902)	50	1355	6000	5000	235	0.6	240
LCRR14D911KJ	550	745	910(819~1001)	50	1500	6000	5000	255	0.6	220
LCRR14D102KJ	625	825	1000(900~1100)	50	1650	6000	5000	280	0.6	200
LCRR14D112KJ	680	895	1100(990~1210)	50	1814	6000	5000	310	0.6	180
LCRR14D122KJ	750	990	1200(1080~1320)	50	1980	6000	5000	310	0.6	150
LCRR14D182KJ	1000	1465	1800(1620~1980)	50	2970	6000	5000	335	0.6	130
