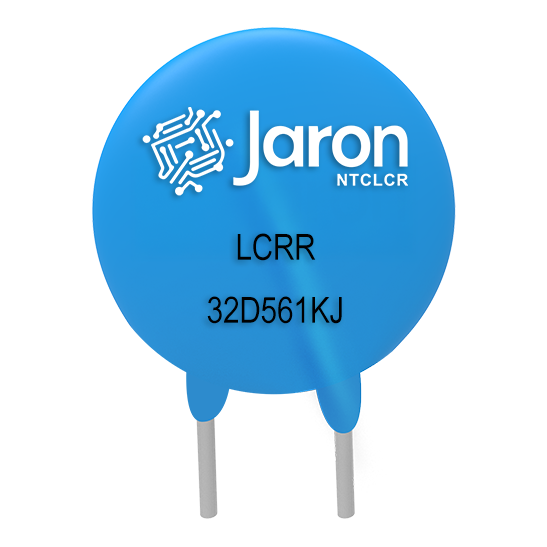

LCRR32D Series

Introduce

With excellent surge absorption and long-term reliability, the 32D series is ideal for high-voltage transient protection in power automation, industrial equipment, and rail transportation applications.

Inquiry

A^-A⁺

Parameter Inquiry

LCRR32D***K Series

Part Number	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current	Energy 10/1000μS	Rated Powe	Typical Capacitance (Reference)
Part Number	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current	Energy 10/1000μS	Rated Powe	Typical Capacitance (Reference)
Standard	AC (V)	DC (V)	V1mA(V)	IP(A)	VC(V)	I(A) Standard	(J) Standard	(W)	@1KHPF
Standard	AC (V)	DC (V)	V1mA(V)	IP(A)	VC(V)	I(A) Standard	(J) Standard	(W)	@1KHPF
LCRR32D201K	130	170	200(185~225)	200	340	25000	250	1.6	5200
LCRR32D221K	140	180	220(198~242)	200	360	25000	270	1.6	5150
LCRR32D241K	150	200	240(216~264)	200	395	25000	290	1.6	5100
LCRR32D271K	175	225	270(243~297)	200	455	25000	300	1.6	4800
LCRR32D301K	190	250	300(270-330)	200	505	25000	330	1.6	4550
LCRR32D331K	210	275	330(297~363)	200	550	25000	360	1.6	4300
LCRR32D361K	230	300	360(324~396)	200	595	25000	380	1.6	3900
LCRR32D391K	250	320	390(351-429)	200	650	25000	400	1.6	3200
LCRR32D431K	275	350	430(387~473)	200	710	25000	430	1.6	3100
LCRR32D471K	300	385	470(423~517)	200	775	25000	460	1.6	2800
LCRR32D511K	320	415	510(459~561)	200	845	25000	510	1.6	2700
LCRR32D561K	350	460	560(504~616)	200	920	25000	540	1.6	2550
LCRR32D621K	385	505	620(558~682)	200	1025	25000	570	1.6	2400
LCRR32D681K	420	560	680(612-748)	200	1120	25000	600	1.6	2200
LCRR32D751K	460	615	750(675~825)	200	1240	25000	620	1.6	2000
LCRR32D781K	485	640	780(702-858)	200	1290	25000	660	1.6	1900
LCRR32D821K	510	670	820(738~902)	200	1355	25000	700	1.6	1800
LCRR32D911K	550	745	910(819-1001)	200	1500	25000	750	1.6	1300
LCRR32D102K	625	825	1000(900-1100)	200	1650	25000	780	1.6	1200
LCRR32D112K	680	895	1100(990-1210)	200	1815	25000	810	1.6	1000
LCRR32D122K	750	990	1200(1080-1320)	200	1980	25000	910	1.6	920
LCRR32D142K	880	1140	1400(1260-1540)	200	2310	25000	960	1.6	800
LCRR32D162K	1000	1280	1600(1400~1760)	200	2640	25000	1020	1.6	700
LCRR32D182K	1100	1465	1800(1620~1980)	200	2970	25000	1080	1.6	600

LCRR32D***KJ Series

Part Number	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current	Energy 10/1000μS	Rated Powe	Typical Capacitance (Reference)
Part Number	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current	Energy 10/1000μS	Rated Powe	Typical Capacitance (Reference)
High Surge	AC(V)	DC (V)	V1mA(V)	IP(A)	VC(V)	I(A) High Surge	(J) High Surge	(W)	@1KHPF
High Surge	AC(V)	DC (V)	V1mA(V)	IP(A)	VC(V)	I(A) High Surge	(J) High Surge	(W)	@1KHPF
LCRR32D201KJ	130	170	200(185~225)	200	340	30000	250	1.6	5200
LCRR32D221KJ	140	180	220(198~242)	200	360	30000	270	1.6	5150
LCRR32D241KJ	150	200	240(216~264)	200	395	30000	290	1.6	5100
LCRR32D271KJ	175	225	270(243~297)	200	455	30000	300	1.6	4800
LCRR32D301KJ	190	250	300(270-330)	200	505	30000	330	1.6	4550
LCRR32D331KJ	210	275	330(297~363)	200	550	30000	360	1.6	4300
LCRR32D361KJ	230	300	360(324~396)	200	595	30000	380	1.6	3900
LCRR32D391KJ	250	320	390(351-429)	200	650	30000	400	1.6	3200
LCRR32D431KJ	275	350	430(387~473)	200	710	30000	430	1.6	3100
LCRR32D471KJ	300	385	470(423~517)	200	775	30000	460	1.6	2800
LCRR32D511KJ	320	415	510(459~561)	200	845	30000	510	1.6	2700
LCRR32D561KJ	350	460	560(504~616)	200	920	30000	540	1.6	2550
LCRR32D621KJ	385	505	620(558~682)	200	1025	30000	570	1.6	2400
LCRR32D681KJ	420	560	680(612-748)	200	1120	30000	600	1.6	2200
LCRR32D751KJ	460	615	750(675~825)	200	1240	30000	620	1.6	2000
LCRR32D781KJ	485	640	780(702-858)	200	1290	30000	660	1.6	1900
LCRR32D821KJ	510	670	820(738~902)	200	1355	30000	700	1.6	1800
LCRR32D911KJ	550	745	910(819-1001)	200	1500	30000	750	1.6	1300
LCRR32D102KJ	625	825	1000(900-1100)	200	1650	30000	780	1.6	1200
LCRR32D112KJ	680	895	1100(990-1210)	200	1815	30000	810	1.6	1000
LCRR32D122KJ	750	990	1200(1080-1320)	200	1980	30000	910	1.6	920
LCRR32D142KJ	880	1140	1400(1260-1540)	200	2310	30000	960	1.6	800
LCRR32D162KJ	1000	1280	1600(1400~1760)	200	2640	30000	1020	1.6	700
LCRR32D182KJ	1100	1465	1800(1620~1980)	200	2970	30000	1080	1.6	600
