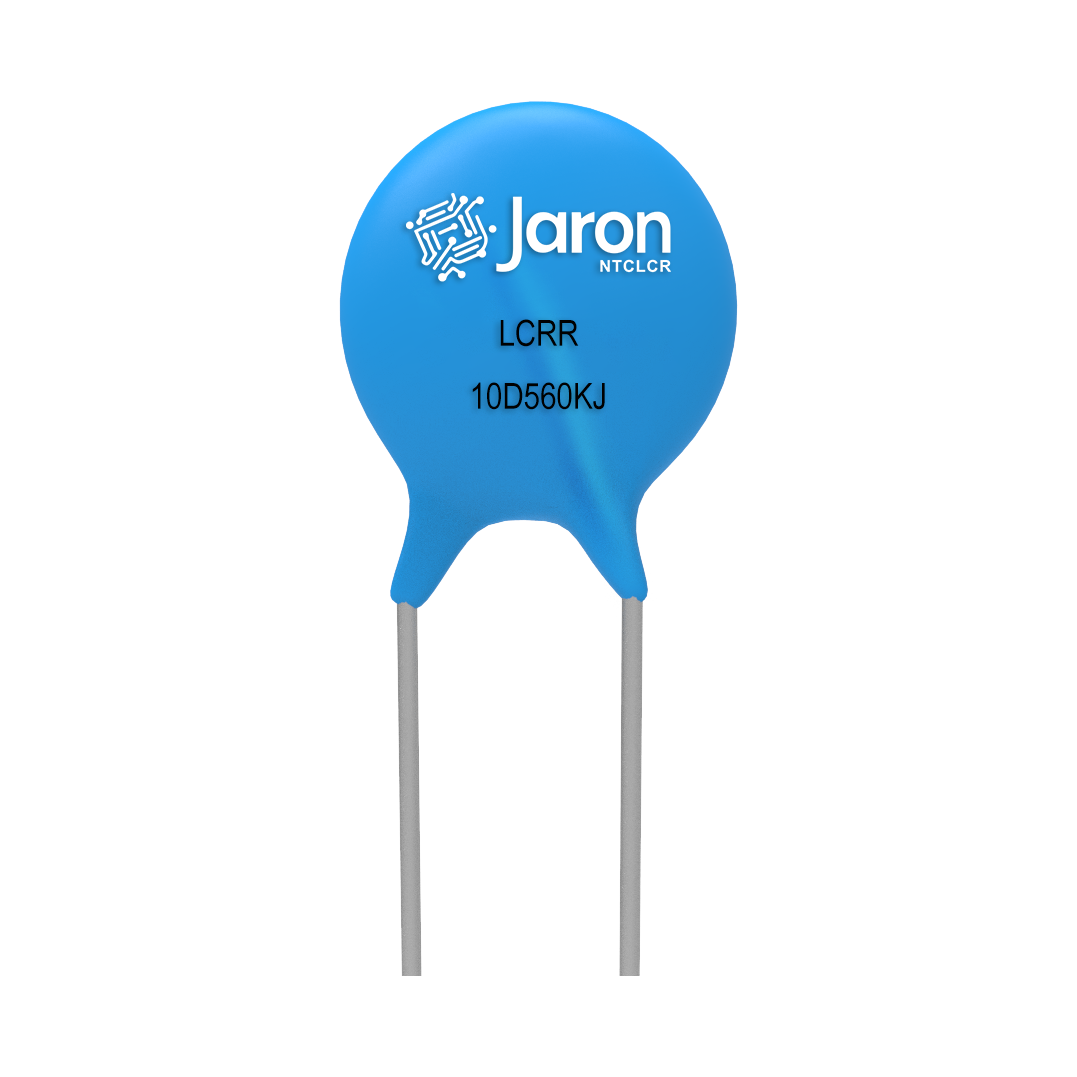

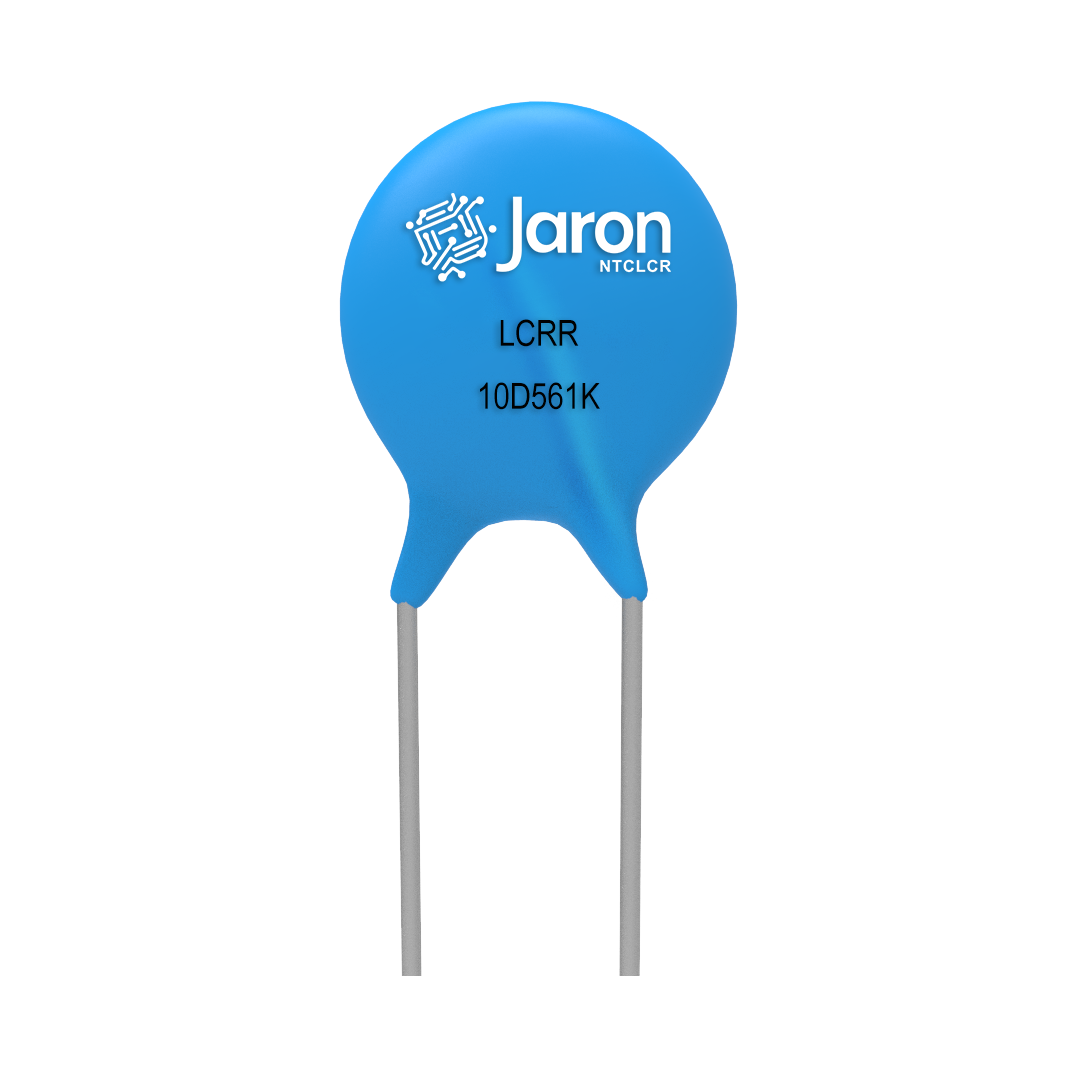

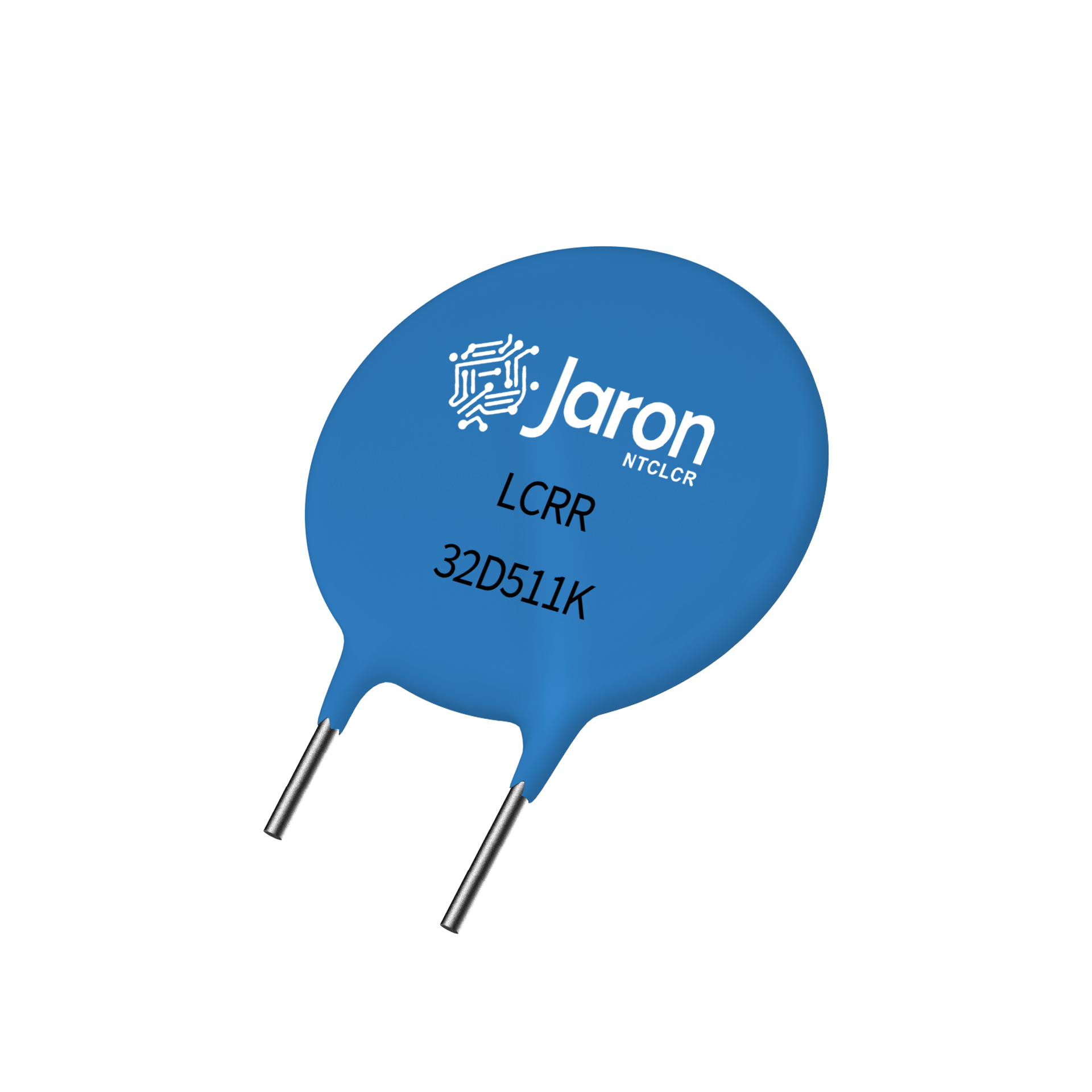

LCRR10D Series

Introduce

Suitable for power and control circuits requiring enhanced surge endurance. The 10D series maintains a compact structure while ensuring device safety, and is widely used in switching power supplies, electric meters, and security devices.

Inquiry

A^-A⁺

Parameter Inquiry

LCRR10D***K Series

Part Number	Maximum allowable voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current		Maximum Energy (10/1000μs)	Rated Power	Typical Capacitance (Reference)


LCRRStandard	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	I(A) Standard		(J) Standard	(W)	@1KHZ (pf)
LCRRStandard	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	1 Time	2 Times	(J) Standard	(W)	@1KHZ (pf)
LCRR10D180K	11	14	18(15~21.6)	5	36	500	250	2.1	0.05	5600
LCRR10D220K	14	18	22(19.5~26)	5	43	500	250	2.5	0.05	4500
LCRR10D270K	17	22	27(24~30)	5	53	500	250	3	0.05	3700
LCRR10D330K	20	26	33(29.5~36.5)	5	66	500	250	4	0.05	3000
LCRR10D390K	25	31	39(35~43)	5	77	500	250	4.6	0.05	2400
LCRR10D470K	30	38	47(42~54)	5	93	500	250	5.5	0.05	2100
LCRR10D560K	35	45	56(50~62)	5	100	500	250	7	0.05	1800
LCRR10D680K	40	56	68(61~75)	5	135	500	250	8.2	0.05	1500
LCRR10D820K	50	65	82(74~90)	25	135	2500	1250	12	0.4	1200
LCRR10D101K	60	85	100(90~110)	25	165	2500	1250	15	0.4	1000
LCRR10D121K	75	100	120(108~132)	25	200	2500	1250	18	0.4	830
LCRR10D151K	95	125	150(135~165)	25	250	2500	1250	22	0.4	670
LCRR10D181K	115	150	180(162~198)	25	300	2500	1250	27	0.4	560
LCRR10D201K	130	170	200(180~220)	25	340	2500	1250	30	0.4	500
LCRR10D221K	140	180	220(198~242)	25	360	2500	1250	32	0.4	450
LCRR10D241K	150	200	240(216~264)	25	395	2500	1250	35	0.4	420
LCRR10D271K	175	225	270(243~297)	25	455	2500	1250	40	0.4	370
LCRR10D301K	190	250	300(270~330)	25	500	2500	1250	40	0.4	330
LCRR10D331K	210	275	330(297~363)	25	550	2500	1250	40	0.4	300
LCRR10D361K	230	300	360(324~396)	25	595	2500	1250	43	0.4	280
LCRR10D391K	250	320	390(351~429)	25	650	2500	1250	47	0.4	260
LCRR10D431K	275	350	430(387~473	25	710	2500	1250	60	0.4	230
LCRR10D471K	300	385	470(423~517)	25	775	2500	1250	65	0.4	210
LCRR10D511K	320	415	510(459~561)	25	845	2500	1250	70	0.4	200
LCRR10D561K	350	460	560(504~616)	25	925	2500	1250	70	0.4	180
LCRR10D621K	385	505	620(558~682)	25	1025	2500	1250	70	0.4	160
LCRR10D681K	420	560	680(612~748)	25	1120	2500	1250	70	0.4	150
LCRR10D751K	460	615	750(675~825)	25	1240	2500	1250	70	0.4	130
LCRR10D781K	485	640	780(702~858)	25	1290	2500	1250	80	0.4	130
LCRR10D821K	510	670	820(738~902)	25	1355	2500	1250	85	0.4	120
LCRR10D911K	550	745	910(819~1001)	25	1500	2500	1250	93	0.4	110
LCRR10D102K	625	825	1000(900~1100)	25	1650	2500	1250	102	0.4	100
LCRR10D112K	680	895	1100(990~1210)	25	1814	2500	1250	115	0.4	90

LCRR10D***KJ Series

Part Number	Maximum allowable voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current		Maximum Energy (10/1000μs)	Rated Power	Typical Capacitance (Reference)


LCRR High Surge	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	I(A) High Surge		(J) High Surge	(W)	@1KHZ (pf)
LCRR High Surge	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	1 Time	2 Times	(J) High Surge	(W)	@1KHZ (pf)
LCRR10D180KJ	11	14	18(15~21.6)	5	36	2000	1000	3	0.05	5600
LCRR10D220KJ	14	18	22(19.5~26)	5	43	2000	1000	5	0.05	4500
LCRR10D270KJ	17	22	27(24~30)	5	53	2000	1000	6	0.05	3700
LCRR10D330KJ	20	26	33(29.5~36.5)	5	66	2000	1000	7	0.05	3000
LCRR10D390KJ	25	31	39(35~43)	5	77	2000	1000	9	0.05	2400
LCRR10D470KJ	30	38	47(42~54)	5	93	2000	1000	11	0.05	2100
LCRR10D560KJ	35	45	56(50~62)	5	100	2000	1000	13	0.05	1800
LCRR10D680KJ	40	56	68(61~75)	5	135	2000	1000	15	0.05	1500
LCRR10D820KJ	50	65	82(74~90)	25	135	3500	2500	17	0.4	1200
LCRR10D101KJ	60	85	100(90~110)	25	165	3500	2500	18	0.4	1000
LCRR10D121KJ	75	100	120(108~132)	25	200	3500	2500	21	0.4	830
LCRR10D151KJ	95	125	150(135~165)	25	250	3500	2500	25	0.4	670
LCRR10D181KJ	115	150	180(162~198)	25	300	3500	2500	30	0.4	560
LCRR10D201KJ	130	170	200(180~220)	25	340	3500	2500	35	0.4	500
LCRR10D221KJ	140	180	220(198~242)	25	360	3500	2500	39	0.4	450
LCRR10D241KJ	150	200	240(216~264)	25	395	3500	2500	42	0.4	420
LCRR10D271KJ	175	225	270(243~297)	25	455	3500	2500	49	0.4	370
LCRR10D301KJ	190	250	300(270~330)	25	500	3500	2500	54	0.4	330
LCRR10D331KJ	210	275	330(297~363)	25	550	3500	2500	58	0.4	300
LCRR10D361KJ	230	300	360(324~396)	25	595	3500	2500	65	0.4	280
LCRR10D391KJ	250	320	390(351~429)	25	650	3500	2500	70	0.4	260
LCRR10D431KJ	275	350	430(387~473	25	710	3500	2500	80	0.4	230
LCRR10D471KJ	300	385	470(423~517)	25	775	3500	2500	85	0.4	210
LCRR10D511KJ	320	415	510(459~561)	25	845	3500	2500	90	0.4	200
LCRR10D561KJ	350	460	560(504~616)	25	925	3500	2500	92	0.4	180
LCRR10D621KJ	385	505	620(558~682)	25	1025	3500	2500	95	0.4	160
LCRR10D681KJ	420	560	680(612~748)	25	1120	3500	2500	98	0.4	150
LCRR10D751KJ	460	615	750(675~825)	25	1240	3500	2500	100	0.4	130
LCRR10D781KJ	485	640	780(702~858)	25	1290	3500	2500	105	0.4	130
LCRR10D821KJ	510	670	820(738~902)	25	1355	3500	2500	110	0.4	120
LCRR10D911KJ	550	745	910(819~1001)	25	1500	3500	2500	130	0.4	110
LCRR10D102KJ	625	825	1000(900~1100)	25	1650	3500	2500	140	0.4	100
LCRR10D112KJ	680	895	1100(990~1210)	25	1814	3500	2500	155	0.4	90
