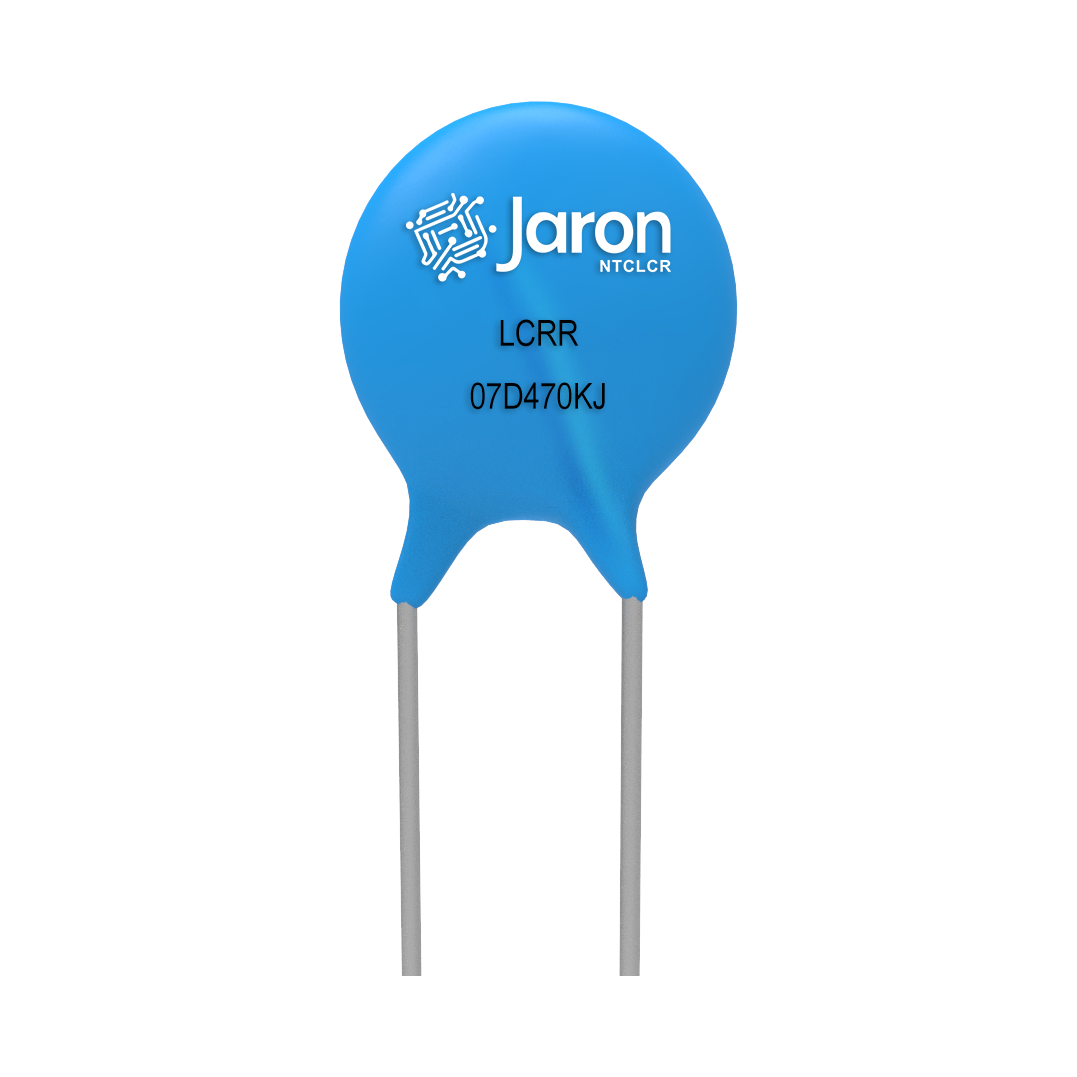

LCRR07D Series

Introduce

Provides efficient overvoltage protection for medium energy-level circuits. The 07D series features stronger surge absorption capability, widely used in TVs, routers, power adapters, and other devices to safeguard critical electronic components against abnormal voltages.

Inquiry

A^-A⁺

Parameter Inquiry

LCRR07D***K Series

Part Number	Maximum allowable voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current		Maximum Energy (10/1000μs)	Rated Power	Typical Capacitance (Reference)


LCRRStandard	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	I(A) Standard		(J) Standard	(W)	@1KHZ (pf)
LCRRStandard	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	1 Time	2 Times	(J) Standard	(W)	@1KHZ (pf)
LCRR07D180K	11	14	18(15~21.6)	2.5	36	250	125	0.9	0.02	2800
LCRR07D220K	14	18	22(19.5~26)	2.5	43	250	125	1.1	0.02	2300
LCRR07D270K	17	22	27(24~30)	2.5	53	250	125	1.4	0.02	1800
LCRR07D330K	20	26	33(29.5~36.5)	2.5	66	250	125	1.7	0.02	1500
LCRR07D390K	25	31	39(35~43)	2.5	77	250	125	2.1	0.02	1300
LCRR07D470K	30	38	47(42~54)	2.5	93	250	125	2.5	0.02	1100
LCRR07D560K	35	45	56(50~62)	2.5	110	250	125	3.1	0.02	900
LCRR07D680K	40	56	68(61~75)	2.5	135	250	125	3.6	0.02	740
LCRR07D820K	50	65	82(74~90)	10	135	1200	600	5.5	0.25	600
LCRR07D101K	60	85	100(90~110)	10	165	1200	600	6.5	0.25	500
LCRR07D121K	75	100	120(108~132)	10	200	1200	600	7.8	0.25	420
LCRR07D151K	95	125	150(135~165)	10	250	1200	600	9.7	0.25	330
LCRR07D181K	115	150	180(162~198)	10	300	1200	600	11.7	0.25	280
LCRR07D201K	130	170	200(180~220)	10	340	1200	600	13	0.25	250
LCRR07D221K	140	180	220(198~242)	10	360	1200	600	14	0.25	230
LCRR07D241K	150	200	240(216~264)	10	395	1200	600	15	0.25	210
LCRR07D271K	175	225	270(243~297)	10	455	1200	600	18	0.25	185
LCRR07D301K	190	250	300(270~330)	10	500	1200	600	20	0.25	165
LCRR07D331K	210	275	330(297~363)	10	550	1200	600	23	0.25	150
LCRR07D361K	230	300	360(324~396)	10	595	1200	600	25	0.25	140
LCRR07D391K	250	320	390(351~429)	10	650	1200	600	25	0.25	130
LCRR07D431K	275	350	430(387~473	10	710	1200	600	28	0.25	115
LCRR07D471K	300	385	470(423~517)	10	775	1200	600	30	0.25	105
LCRR07D511K	320	415	510(459~561)	10	845	1200	600	30	0.25	100
LCRR07D561K	350	460	560(504~616)	10	925	1200	600	30	0.25	90
LCRR07D621K	385	505	620(558~682)	10	1025	1200	600	33	0.25	80
LCRR07D681K	420	560	680(612~748)	10	1120	1200	600	33	0.25	75
LCRR07D751K	460	615	750(675~825)	10	1240	1200	600	67.2	0.25	70
LCRR07D781K	485	640	780(702~858)	10	1290	1200	600	67.2	0.25	70
LCRR07D821K	510	670	820(738~902)	10	1355	1200	600	67.2	0.25	60

LCRR07D***KJ Series

Part Number	Maximum allowable voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current		Maximum Energy (10/1000μs)	Rated Power	Typical Capacitance (Reference)


LCRR High Surge	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	I(A) High Surge		(J) High Surge	(W)	@1KHZ (pf)
LCRR High Surge	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	1 Time	2 Times	(J) High Surge	(W)	@1KHZ (pf)
LCRR07D180KJ	11	14	18(15~21.6)	2.5	36	500	250	2	0.02	2800
LCRR07D220KJ	14	18	22(19.5~26)	2.5	43	500	250	2.4	0.02	2300
LCRR07D270KJ	17	22	27(24~30)	2.5	53	500	250	3	0.02	1800
LCRR07D330KJ	20	26	33(29.5~36.5)	2.5	66	500	250	3.5	0.02	1500
LCRR07D390KJ	25	31	39(35~43)	2.5	77	500	250	4	0.02	1300
LCRR07D470KJ	30	38	47(42~54)	2.5	93	500	250	5	0.02	1100
LCRR07D560KJ	35	45	56(50~62)	2.5	110	500	250	6	0.02	900
LCRR07D680KJ	40	56	68(61~75)	2.5	135	500	250	7	0.02	740
LCRR07D820KJ	50	65	82(74~90)	10	135	1750	1250	10	0.25	600
LCRR07D101KJ	60	85	100(90~110)	10	165	1750	1250	12	0.25	500
LCRR07D121KJ	75	100	120(108~132)	10	200	1750	1250	13	0.25	420
LCRR07D151KJ	95	125	150(135~165)	10	250	1750	1250	13	0.25	330
LCRR07D181KJ	115	150	180(162~198)	10	300	1750	1250	16	0.25	280
LCRR07D201KJ	130	170	200(180~220)	10	340	1750	1250	17	0.25	250
LCRR07D221KJ	140	180	220(198~242)	10	360	1750	1250	19	0.25	230
LCRR07D241KJ	150	200	240(216~264)	10	395	1750	1250	21	0.25	210
LCRR07D271KJ	175	225	270(243~297)	10	455	1750	1250	24	0.25	185
LCRR07D301KJ	190	250	300(270~330)	10	500	1750	1250	26	0.25	165
LCRR07D331KJ	210	275	330(297~363)	10	550	1750	1250	28	0.25	150
LCRR07D361KJ	230	300	360(324~396)	10	595	1750	1250	32	0.25	140
LCRR07D391KJ	250	320	390(351~429)	10	650	1750	1250	35	0.25	130
LCRR07D431KJ	275	350	430(387~473	10	710	1750	1250	40	0.25	115
LCRR07D471KJ	300	385	470(423~517)	10	775	1750	1250	42	0.25	105
LCRR07D511KJ	320	415	510(459~561)	10	845	1750	1250	45	0.25	100
LCRR07D561KJ	350	460	560(504~616)	10	925	1750	1250	49	0.25	90
LCRR07D621KJ	385	505	620(558~682)	10	1025	1750	1250	55	0.25	80
LCRR07D681KJ	420	560	680(612~748)	10	1120	1750	1250	60	0.25	75
LCRR07D751KJ	460	615	750(675~825)	10	1240	1750	1250	65	0.25	70
LCRR07D781KJ	485	640	780(702~858)	10	1290	1750	1250	65	0.25	70
LCRR07D821KJ	510	670	820(738~902)	10	1355	1750	1250	70	0.25	60
