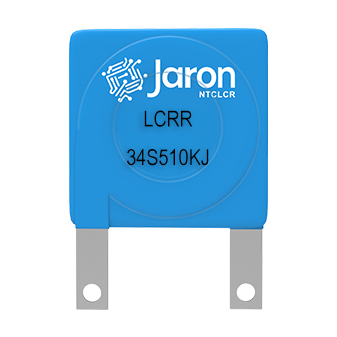

High-energy varistor designed for harsh electromagnetic environments. The 34S series features exceptional current handling capability and is widely used in communication base stations, power systems, and new energy equipment.
LCRR34S***K Series
| Part Number | Maximum Allowable Voltage | Varistor Voltage | Maximum Clamping Voltage | Withstanding Surge Current | Energy 10/1000μS |
Rated Powe | Typical Capacitance (Reference) | ||
| Standard | AC (V) | DC (V) | V1mA(V) | IP(A) | VC(V) | I(A) Standard | (J) Standard | (W) | @1KHPF |
| LCRR34S130K | 130 | 170 | 200(185~225) | 300 | 340 | 40000 | 330 | 2.1 | 8000 |
| LCRR34S140K | 140 | 180 | 220(198-242) | 300 | 360 | 40000 | 360 | 2.1 | 7800 |
| LCRR34S150K | 150 | 200 | 240(216~264) | 300 | 395 | 40000 | 390 | 21 | 7600 |
| LCRR34S175K | 175 | 225 | 270(243-297) | 300 | 455 | 40000 | 420 | 2.1 | 7200 |
| LCRR34S190K | 190 | 250 | 300(270-330) | 300 | 505 | 40000 | 460 | 2.1 | 7000 |
| LCRR34S210K | 210 | 275 | 330(297~363) | 300 | 550 | 40000 | 500 | 2.1 | 6400 |
| LCRR34S230K | 230 | 300 | 360(324~396) | 300 | 595 | 40000 | 510 | 2.1 | 6000 |
| LCRR34S250K | 250 | 320 | 390(351~429) | 300 | 650 | 40000 | 530 | 2.1 | 4800 |
| LCRR34S275K | 275 | 350 | 430(387~473) | 300 | 710 | 40000 | 600 | 21 | 4600 |
| LCRR34S300K | 300 | 385 | 470(423-517) | 300 | 775 | 40000 | 650 | 21 | 4100 |
| LCRR34S320K | 320 | 415 | 510(459-561) | 300 | 845 | 40000 | 700 | 21 | 4000 |
| LCRR34S350K | 350 | 460 | 560(504~616) | 300 | 920 | 40000 | 730 | 2.1 | 3800 |
| LCRR34S385K | 385 | 505 | 620(558~682) | 300 | 1025 | 40000 | 780 | 2.1 | 3600 |
| LCRR34S420K | 420 | 560 | 680(612~748) | 300 | 1120 | 40000 | 810 | 2.1 | 3300 |
| LCRR34S460K | 460 | 615 | 750(675~825) | 300 | 1240 | 40000 | 850 | 21 | 3000 |
| LCRR34S485K | 485 | 640 | 780(702-858) | 300 | 1290 | 40000 | 930 | 2.1 | 2850 |
| LCRR34S510K | 510 | 670 | 820(738~902) | 300 | 1355 | 40000 | 970 | 21 | 2700 |
| LCRR34S550K | 550 | 745 | 910(819-1001) | 300 | 1500 | 40000 | 1050 | 2.1 | 2100 |
| LCRR34S625K | 625 | 825 | 1000(900-1100) | 300 | 1650 | 40000 | 1120 | 2.1 | 1700 |
| LCRR34S680K | 680 | 895 | 1100(990-1210) | 300 | 1815 | 40000 | 1250 | 2.1 | 1520 |
| LCRR34S750K | 750 | 990 | 1200(1080-1320) | 300 | 1980 | 40000 | 1340 | 2.1 | 1400 |
| LCRR34S880K | 880 | 1140 | 1400(1260-1540) | 300 | 2310 | 40000 | 1400 | 2.1 | 1200 |
| LCRR34S1000K | 1000 | 1280 | 1600(1400-1760) | 300 | 2640 | 40000 | 1500 | 21 | 1100 |
| LCRR34S1100K | 1100 | 1465 | 1800(1620-1980) | 300 | 2970 | 40000 | 1600 | 2.1 | 1000 |
LCRR34S***KJ Series
| Part Number | Maximum Allowable Voltage | Varistor Voltage | Maximum Clamping Voltage | Withstanding Surge Current | Energy 10/1000μS | Rated Powe | Typical Capacitance (Reference) | ||
| High Surge | AC (V) | DC (V) | V1mA(V) | IP(A) | VC(V) | I(A) High Surge | (J) High Surge | (W) | @1KHPF |
| LCRR34S130KJ | 130 | 170 | 200(185~225) | 300 | 340 | 50000 | 363 | 2.1 | 8000 |
| LCRR34S140KJ | 140 | 180 | 220(198-242) | 300 | 360 | 50000 | 396 | 2.1 | 7800 |
| LCRR34S150KJ | 150 | 200 | 240(216~264) | 300 | 395 | 50000 | 429 | 21 | 7600 |
| LCRR34S175KJ | 175 | 225 | 270(243-297) | 300 | 455 | 50000 | 462 | 2.1 | 7200 |
| LCRR34S190KJ | 190 | 250 | 300(270-330) | 300 | 505 | 50000 | 506 | 2.1 | 7000 |
| LCRR34S210KJ | 210 | 275 | 330(297~363) | 300 | 550 | 50000 | 550 | 2.1 | 6400 |
| LCRR34S230KJ | 230 | 300 | 360(324~396) | 300 | 595 | 50000 | 561 | 2.1 | 6000 |
| LCRR34S250KJ | 250 | 320 | 390(351~429) | 300 | 650 | 50000 | 583 | 2.1 | 4800 |
| LCRR34S275KJ | 275 | 350 | 430(387~473) | 300 | 710 | 50000 | 660 | 21 | 4600 |
| LCRR34S300KJ | 300 | 385 | 470(423-517) | 300 | 775 | 50000 | 715 | 21 | 4100 |
| LCRR34S320KJ | 320 | 415 | 510(459-561) | 300 | 845 | 50000 | 770 | 21 | 4000 |
| LCRR34S350KJ | 350 | 460 | 560(504~616) | 300 | 920 | 50000 | 803 | 2.1 | 3800 |
| LCRR34S385KJ | 385 | 505 | 620(558~682) | 300 | 1025 | 50000 | 858 | 2.1 | 3600 |
| LCRR34S420KJ | 420 | 560 | 680(612~748) | 300 | 1120 | 50000 | 891 | 2.1 | 3300 |
| LCRR34S460KJ | 460 | 615 | 750(675~825) | 300 | 1240 | 50000 | 935 | 21 | 3000 |
| LCRR34S485KJ | 485 | 640 | 780(702-858) | 300 | 1290 | 50000 | 1023 | 2.1 | 2850 |
| LCRR34S510KJ | 510 | 670 | 820(738~902) | 300 | 1355 | 50000 | 1067 | 21 | 2700 |
| LCRR34S550KJ | 550 | 745 | 910(819-1001) | 300 | 1500 | 50000 | 1155 | 2.1 | 2100 |
| LCRR34S625KJ | 625 | 825 | 1000(900-1100) | 300 | 1650 | 50000 | 1232 | 2.1 | 1700 |
| LCRR34S680KJ | 680 | 895 | 1100(990-1210) | 300 | 1815 | 50000 | 1375 | 2.1 | 1520 |
| LCRR34S750KJ | 750 | 990 | 1200(1080-1320) | 300 | 1980 | 50000 | 1474 | 2.1 | 1400 |
| LCRR34S880KJ | 880 | 1140 | 1400(1260-1540) | 300 | 2310 | 50000 | 1540 | 2.1 | 1200 |
| LCRR34S1000KJ | 1000 | 1280 | 1600(1400-1760) | 300 | 2640 | 50000 | 1650 | 21 | 1100 |
| LCRR34S1100KJ | 1100 | 1465 | 1800(1620-1980) | 300 | 2970 | 50000 | 1760 | 2.1 | 1000 |
