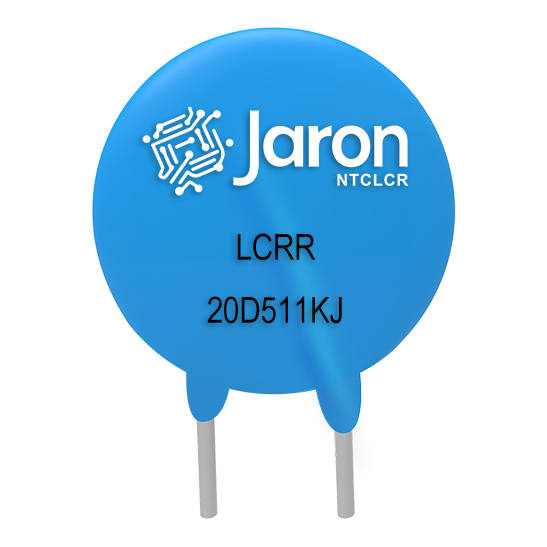

LCRR20D Series

Introduce

Specifically designed for high-energy equipment, the 20D series effectively absorbs strong surge currents, making it ideal for air conditioners, elevator controls, and industrial systems with high overvoltage protection demands.

Inquiry

A^-A⁺

Parameter Inquiry

LCRR20D***K Series

Part Number	Maximum allowable voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current		Maximum Energy (10/1000μs)	Rated Power	Typical Capacitance (Reference)


LCRRStandard	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	I(A) Standard		(J) Standard	(W)	@1KHZ (pf)
LCRRStandard	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	1 Time	2 Times	(J) Standard	(W)	@1KHZ (pf)
LCRR20D180K	11	14	18(15~21.6)	20	36	2000	1000	11	0.2	28500
LCRR20D220K	14	18	22(19.5~26)	20	43	2000	1000	14	0.2	18500
LCRR20D270K	17	22	27(24~30)	20	53	2000	1000	16	0.2	13000
LCRR20D330K	20	26	33(29.5~36.5)	20	66	2000	1000	23	0.2	11500
LCRR20D390K	25	31	39(35~43)	20	77	2000	1000	26	0.2	8500
LCRR20D470K	30	38	47(42~54)	20	93	2000	1000	30	0.2	7400
LCRR20D560K	35	45	56(50~62)	20	100	2000	1000	41	0.2	6500
LCRR20D680K	40	56	68(61~75)	20	135	2000	1000	46	0.2	5800
LCRR20D820K	50	65	82(74~90)	100	135	6500	4000	38	1	4900
LCRR20D101K	60	85	100(90~110)	100	165	6500	4000	45	1	4000
LCRR20D121K	75	100	120(108~132)	100	200	6500	4000	55	1	3300
LCRR20D151K	95	125	150(135~165)	100	250	6500	4000	70	1	2700
LCRR20D181K	115	150	180(162~198)	100	300	6500	4000	85	1	2200
LCRR20D201K	130	170	200(180~220)	100	340	6500	4000	95	1	2000
LCRR20D221K	140	180	220(198~242)	100	360	6500	4000	100	1	1800
LCRR20D241K	150	200	240(216~264)	100	395	6500	4000	108	1	1650
LCRR20D271K	175	225	270(243~297)	100	455	6500	4000	127	1	1500
LCRR20D301K	190	250	300(270~330)	100	500	6500	4000	136	1	1300
LCRR20D331K	210	275	330(297~363)	100	550	6500	4000	150	1	1200
LCRR20D361K	230	300	360(324~396)	100	595	6500	4000	163	1	1100
LCRR20D391K	250	320	390(351~429)	100	650	6500	4000	180	1	1000
LCRR20D431K	275	350	430(387~473	100	710	6500	4000	190	1	930
LCRR20D471K	300	385	470(423~517)	100	775	6500	4000	220	1	850
LCRR20D511K	320	415	510(459~561)	100	845	6500	4000	220	1	780
LCRR20D561K	350	460	560(504~616)	100	925	6500	4000	220	1	710
LCRR20D621K	385	505	620(558~682)	100	1025	6500	4000	220	1	650
LCRR20D681K	420	560	680(612~748)	100	1120	6500	4000	230	1	600
LCRR20D751K	460	615	750(675~825)	100	1240	6500	4000	255	1	530
LCRR20D781K	485	640	780(702~858)	100	1290	6500	4000	265	1	510
LCRR20D821K	510	670	820(738~902)	100	1355	6500	4000	282	1	500
LCRR20D911K	550	745	910(819~1001)	100	1500	6500	4000	310	1	440
LCRR20D102K	625	825	1000(900~1100)	100	1650	6500	4000	342	1	400
LCRR20D112K	680	895	1100(990~1210)	100	1814	6500	4000	383	1	460
LCRR20D122K	750	990	1200(1080~1320)	100	1980	6500	4000	408	1	320
LCRR20D152K	900	1200	1500(1350~1650)	100	2475	6500	4000	420	1	260
LCRR20D162K	1000	1280	1600(1440~1760)	100	2640	6500	4000	606	1	320
LCRR20D182K	1000	1465	1800(1620~1980)	100	2970	6500	4000	625	1	320

LCRR20D***KJ Series

Part Number	Maximum allowable voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current		Maximum Energy (10/1000μs)	Rated Power	Typical Capacitance (Reference)


LCRR High Surge	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	I(A) High Surge		(J) High Surge	(W)	@1KHZ (pf)
LCRR High Surge	VAC (V)	VDC (V)	V1mA (V)	IP (A)	VC (V)	1 Time	2 Times	(J) High Surge	(W)	@1KHZ (pf)
LCRR20D180KJ	11	14	18(15~21.6)	20	36	3000	1000	13	0.2	28500
LCRR20D220KJ	14	18	22(19.5~26)	20	43	3000	1000	16	0.2	18500
LCRR20D270KJ	17	22	27(24~30)	20	53	3000	1000	19	0.2	13000
LCRR20D330KJ	20	26	33(29.5~36.5)	20	66	3000	1000	24	0.2	11500
LCRR20D390KJ	25	31	39(35~43)	20	77	3000	1000	28	0.2	8500
LCRR20D470KJ	30	38	47(42~54)	20	93	3000	1000	34	0.2	7400
LCRR20D560KJ	35	45	56(50~62)	20	100	3000	1000	41	0.2	6500
LCRR20D680KJ	40	56	68(61~75)	20	135	3000	1000	49	0.2	5800
LCRR20D820KJ	50	65	82(74~90)	100	135	10000	7000	56	1	4900
LCRR20D101KJ	60	85	100(90~110)	100	165	10000	7000	70	1	4000
LCRR20D121KJ	75	100	120(108~132)	100	200	10000	7000	85	1	3300
LCRR20D151KJ	95	125	150(135~165)	100	250	10000	7000	106	1	2700
LCRR20D181KJ	115	150	180(162~198)	100	300	10000	7000	130	1	2200
LCRR20D201KJ	130	170	200(180~220)	100	340	10000	7000	140	1	2000
LCRR20D221KJ	140	180	220(198~242)	100	360	10000	7000	155	1	1800
LCRR20D241KJ	150	200	240(216~264)	100	395	10000	7000	168	1	1650
LCRR20D271KJ	175	225	270(243~297)	100	455	10000	7000	190	1	1500
LCRR20D301KJ	190	250	300(270~330)	100	500	10000	7000	210	1	1300
LCRR20D331KJ	210	275	330(297~363)	100	550	10000	7000	228	1	1200
LCRR20D361KJ	230	300	360(324~396)	100	595	10000	7000	255	1	1100
LCRR20D391KJ	250	320	390(351~429)	100	650	10000	7000	275	1	1000
LCRR20D431KJ	275	350	430(387~473	100	710	10000	7000	305	1	930
LCRR20D471KJ	300	385	470(423~517)	100	775	10000	7000	350	1	850
LCRR20D511KJ	320	415	510(459~561)	100	845	10000	7000	360	1	780
LCRR20D561KJ	350	460	560(504~616)	100	925	10000	7000	380	1	710
LCRR20D621KJ	385	505	620(558~682)	100	1025	10000	7000	390	1	650
LCRR20D681KJ	420	560	680(612~748)	100	1120	10000	7000	400	1	600
LCRR20D751KJ	460	615	750(675~825)	100	1240	10000	7000	420	1	530
LCRR20D781KJ	485	640	780(702~858)	100	1290	10000	7000	440	1	510
LCRR20D821KJ	510	670	820(738~902)	100	1355	10000	7000	460	1	500
LCRR20D911KJ	550	745	910(819~1001)	100	1500	10000	7000	510	1	440
LCRR20D102KJ	625	825	1000(900~1100)	100	1650	10000	7000	565	1	400
LCRR20D112KJ	680	895	1100(990~1210)	100	1814	10000	7000	620	1	460
LCRR20D122KJ	750	990	1200(1080~1320)	100	1980	10000	7000	660	1	320
LCRR20D152KJ	900	1200	1500(1350~1650)	100	2475	10000	7000	660	1	260
LCRR20D162KJ	1000	1280	1600(1440~1760)	100	2640	10000	7000	660	1	320
LCRR20D182KJ	1000	1465	1800(1620~1980)	100	2970	10000	7000	660	1	320
