Varistor: A Key Component in Circuit Protection
Introduction to Metal Oxide Va...
Provides safety protection for heavy-load circuits. The 25D series handles large energy pulse interference, suitable for surge suppression in large household appliances, lighting systems, and power facilities.

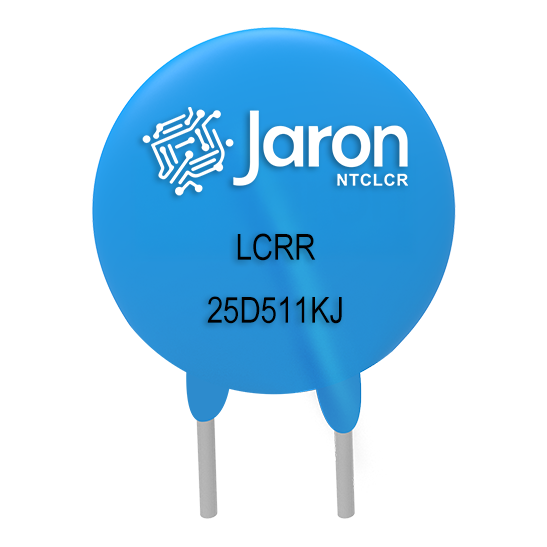

LCRR25D***K Series
| Part Number | Maximum Allowable Voltage | Varistor Voltage | Maximum Clamping Voltage | Withstanding Surge Current | Energy 10/1000μS |
Rated Powe | Typical Capacitance (Reference) | ||
| Standard | AC (V) | DC (V) | V1mA(V) | IP(A) | VC(V) | I(A) Standard | (J) Standard | (W) | @1KHPF |
| LCRR25D820K | 50 | 65 | 82(73.8~90.2) | 150 | 135 | 15000 | 80 | 12 | 7700 |
| LCRR25D101K | 60 | 85 | 100(90~110) | 150 | 165 | 15000 | 100 | 12 | 6300 |
| LCRR25D121K | 75 | 100 | 120(108~132) | 150 | 200 | 15000 | 120 | 12 | 5200 |
| LCRR25D151K | 95 | 125 | 150(135~165) | 150 | 250 | 15000 | 160 | 12 | 4300 |
| LCRR25D181K | 115 | 150 | 180(162-198) | 150 | 300 | 15000 | 175 | 12 | 3500 |
| LCRR25D201K | 130 | 170 | 200(185~225) | 150 | 340 | 15000 | 190 | 12 | 3200 |
| LCRR25D221K | 140 | 180 | 220(198-242) | 150 | 360 | 15000 | 200 | 12 | 2900 |
| LCRR25D241K | 150 | 200 | 240(216-264) | 150 | 395 | 15000 | 220 | 12 | 2650 |
| LCRR25D271K | 175 | 225 | 270(243-297) | 150 | 455 | 15000 | 255 | 12 | 2400 |
| LCRR25D301K | 190 | 250 | 300(270~330) | 150 | 505 | 15000 | 275 | 12 | 2100 |
| LCRR25D331K | 210 | 275 | 330(297~363) | 150 | 550 | 15000 | 300 | 12 | 1900 |
| LCRR25D361K | 230 | 300 | 360(324~396) | 150 | 595 | 15000 | 360 | 12 | 1750 |
| LCRR25D391K | 250 | 320 | 390(351~429) | 150 | 650 | 15000 | 380 | 12 | 1600 |
| LCRR25D431K | 275 | 350 | 430(387~473) | 150 | 710 | 15000 | 400 | 12 | 1500 |
| LCRR25D471K | 300 | 385 | 470(423-517) | 150 | 775 | 15000 | 420 | 12 | 1400 |
| LCRR25D511K | 320 | 415 | 510(459-561) | 150 | 845 | 15000 | 440 | 12 | 1250 |
| LCRR25D561K | 350 | 460 | 560(504~616) | 150 | 920 | 15000 | 450 | 12 | 1150 |
| LCRR25D621K | 385 | 505 | 620(558~682) | 150 | 1025 | 15000 | 460 | 12 | 1050 |
| LCRR25D681K | 420 | 560 | 680(612-748) | 150 | 1120 | 15000 | 460 | 12 | 950 |
| LCRR25D751K | 460 | 615 | 750(675~825) | 150 | 1240 | 15000 | 510 | 12 | 875 |
| LCRR25D781K | 485 | 640 | 780(702-858) | 150 | 1290 | 15000 | 530 | 12 | 850 |
| LCRR25D821K | 510 | 670 | 820(738~902) | 150 | 1355 | 15000 | 570 | 12 | 800 |
| LCRR25D911K | 550 | 745 | 910(819-1001) | 150 | 1500 | 15000 | 620 | 12 | 700 |
| LCRR25D102K | 625 | 825 | 1000(900-1100) | 150 | 1650 | 15000 | 685 | 12 | 650 |
| LCRR25D112K | 680 | 895 | 1100(990-1210) | 150 | 1815 | 15000 | 700 | 12 | 600 |
| LCRR25D122K | 750 | 990 | 1200(1080~1320) | 150 | 1980 | 15000 | 720 | 12 | 550 |
| LCRR25D142K | 880 | 1140 | 1400(1260-1540) | 150 | 2310 | 15000 | 740 | 12 | 500 |
| LCRR25D162K | 1000 | 1280 | 1600(1400~1760) | 150 | 2640 | 15000 | 770 | 12 | 450 |
| LCRR25D182K | 1100 | 1465 | 1800(1620-1980) | 150 | 2970 | 15000 | 850 | 12 | 400 |
LCRR25D***K Series
| Part Number | Maximum Allowable Voltage | Varistor Voltage | Maximum Clamping Voltage | Withstanding Surge Current | Energy 10/1000μS | Rated Powe | Typical Capacitance (Reference) | ||
| High Surge | AC (V) | DC (V) | V1mA(V) | IP(A) | VC(V) | I(A) High Surge | (J) High Surge | (W) | @1KHPF |
| LCRR25D820KJ | 50 | 65 | 82(73.8~90.2) | 150 | 135 | 18000 | 88 | 12 | 7700 |
| LCRR25D101KJ | 60 | 85 | 100(90~110) | 150 | 165 | 18000 | 110 | 12 | 6300 |
| LCRR25D121KJ | 75 | 100 | 120(108~132) | 150 | 200 | 18000 | 132 | 12 | 5200 |
| LCRR25D151KJ | 95 | 125 | 150(135~165) | 150 | 250 | 18000 | 176 | 12 | 4300 |
| LCRR25D181KJ | 115 | 150 | 180(162-198) | 150 | 300 | 18000 | 193 | 12 | 3500 |
| LCRR25D201KJ | 130 | 170 | 200(185~225) | 150 | 340 | 18000 | 209 | 12 | 3200 |
| LCRR25D221KJ | 140 | 180 | 220(198-242) | 150 | 360 | 18000 | 220 | 12 | 2900 |
| LCRR25D241KJ | 150 | 200 | 240(216-264) | 150 | 395 | 18000 | 242 | 12 | 2650 |
| LCRR25D271KJ | 175 | 225 | 270(243-297) | 150 | 455 | 18000 | 281 | 12 | 2400 |
| LCRR25D301KJ | 190 | 250 | 300(270~330) | 150 | 505 | 18000 | 303 | 12 | 2100 |
| LCRR25D331KJ | 210 | 275 | 330(297~363) | 150 | 550 | 18000 | 330 | 12 | 1900 |
| LCRR25D361KJ | 230 | 300 | 360(324~396) | 150 | 595 | 18000 | 396 | 12 | 1750 |
| LCRR25D391KJ | 250 | 320 | 390(351~429) | 150 | 650 | 18000 | 418 | 12 | 1600 |
| LCRR25D431KJ | 275 | 350 | 430(387~473) | 150 | 710 | 18000 | 440 | 12 | 1500 |
| LCRR20D471KJ | 300 | 385 | 470(423-517) | 150 | 775 | 18000 | 462 | 12 | 1400 |
| LCRR25D511KJ | 320 | 415 | 510(459-561) | 150 | 845 | 18000 | 484 | 12 | 1250 |
| LCRR25D561KJ | 350 | 460 | 560(504~616) | 150 | 920 | 18000 | 495 | 12 | 1150 |
| LCRR25D621KJ | 385 | 505 | 620(558~682) | 150 | 1025 | 18000 | 506 | 12 | 1050 |
| LCRR25D681KJ | 420 | 560 | 680(612-748) | 150 | 1120 | 18000 | 506 | 12 | 950 |
| LCRR25D751KJ | 460 | 615 | 750(675~825) | 150 | 1240 | 18000 | 561 | 12 | 875 |
| LCRR25D781KJ | 485 | 640 | 780(702-858) | 150 | 1290 | 18000 | 583 | 12 | 850 |
| LCRR25D821KJ | 510 | 670 | 820(738~902) | 150 | 1355 | 18000 | 627 | 12 | 800 |
| LCRR25D911KJ | 550 | 745 | 910(819-1001) | 150 | 1500 | 18000 | 682 | 12 | 700 |
| LCRR25D102KJ | 625 | 825 | 1000(900-1100) | 150 | 1650 | 18000 | 754 | 12 | 650 |
| LCRR25D112KJ | 680 | 895 | 1100(990-1210) | 150 | 1815 | 18000 | 770 | 12 | 600 |
| LCRR25D122KJ | 750 | 990 | 1200(1080~1320) | 150 | 1980 | 18000 | 792 | 12 | 550 |
| LCRR25D142KJ | 880 | 1140 | 1400(1260-1540) | 150 | 2310 | 18000 | 814 | 12 | 500 |
| LCRR25D162KJ | 1000 | 1280 | 1600(1400~1760) | 150 | 2640 | 18000 | 847 | 12 | 450 |
| LCRR25D182KJ | 1100 | 1465 | 1800(1620-1980) | 150 | 2970 | 18000 | 935 | 12 | 400 |
