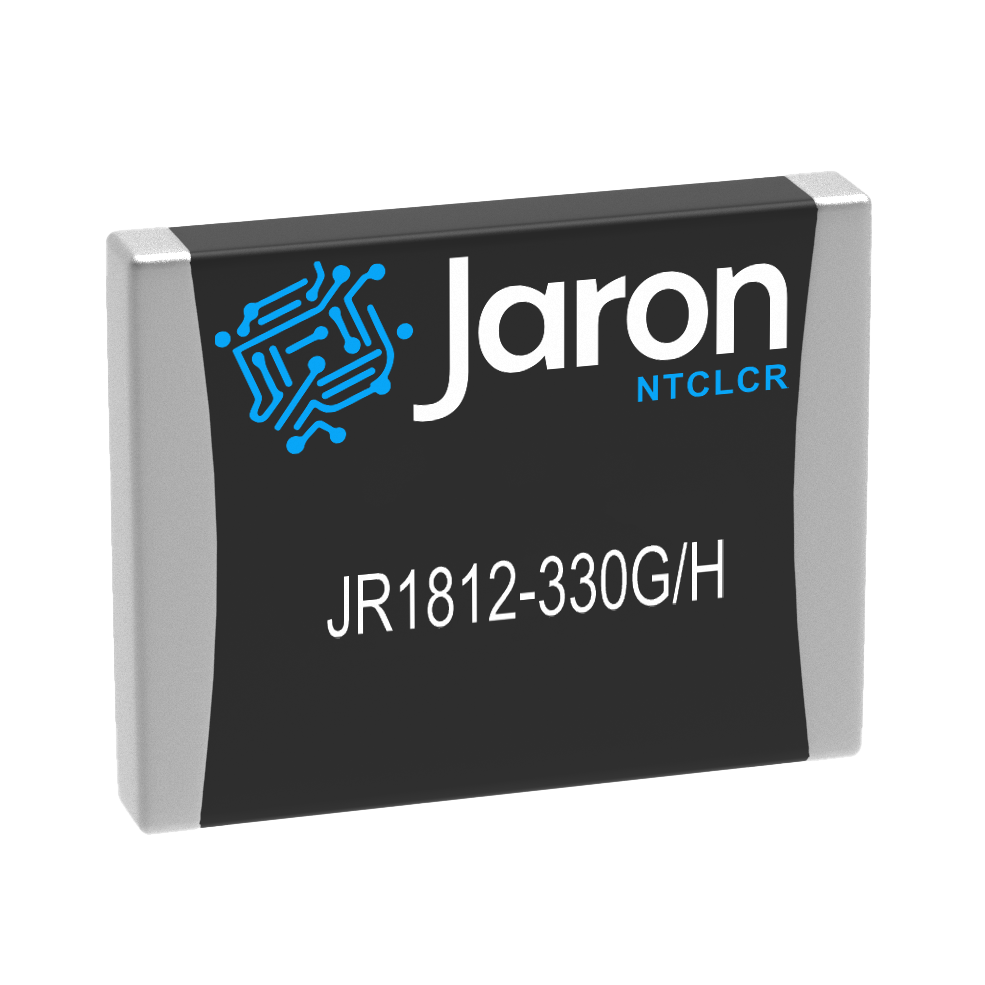

LCRRSMD1812 Series

Parameter Inquiry

LCRRSMD1812 Series

Part Number		Working Voltage		Breakdown Voltage		Peak Current	Clamping Voltage		Surge Voltage(V)
		AC	DC	@ 1mA DC		8/20uS	8/20uS
		VAC	V DC	VB		Ip	A	V
1812	JR1812-8R0G/H	4	5.5	5.5	6.6-9.9	500A/800A	1-10	18	1000V & 2000V
	JR1812-120G/H	7	9	12	10.2-13.8	500A/800A	1-10	24
	JR1812-180G/H	11	14	18	15.3-21.7	500A/800A	1-10	30
	JR1812-220G/H	12	16	22	19.8-24.2	500A/800A	1-10	36
	JR1812-240G/H	14	18	24	21.6-26.4	500A/800A	1-10	38
	JR1812-270G/H	17	22	27	24.3-29.7	500A/800A	1-10	44
	JR1812-300G/H	18	24	30	27.2-33.0	500A/800A	1-10	48
	JR1812-330G/H	20	26	33	29.7-36.3	500A/800A	1-10	54
	JR1812-360G/H	22	28	36	32.7-39.6	500A/800A	1-10	59
	JR1812-390G/H	25	30	39	35.1-42.9	500A/800A	1-10	65
	JR1812-420G/H	26	33	42	38.1-46.2	500A/800A	1-10	72
	JR1812-470G/H	30	38	47	42.3-51.7	500A/800A	1-10	77
	JR1812-560G/H	35	45	56	50.4-61.6	500A/800A	1-10	90
	JR1812-680G/H	40	56	68	61.2-74.8	500A/800A	1-10	110
	JR1812-760G/H	45	60	76	69.1-83.6	500A/800A	1-10	126
	JR1812-820G/H	50	65	82	73.8-90.2	500A/800A	1-10	135
	JR1812-101G/H	60	85	100	90-110	500A/800A	1-10	165
	JR1812-121G/H	75	100	120	108-132	500A/800A	1-10	200

LCRRSMD1812 High Voltage Series

Part Number		Working Voltage		Breakdown Voltage		Peak Current	Clamping Voltage		Surge Voltage(V)
		AC	DC	@ 1mA DC		8/20uS	8/20uS
		VAC	V DC	VB		Ip	A	V
1812 High Voltage	JR1812-171G	110	140	170	154-187	500A	5-10	300	1000V
	JR1812-201G	130	170	200	185-225	500A	5-10	340
	JR1812-221G	140	180	220	198-242	500A	5-10	360
	JR1812-241G	150	200	240	216-264	500A	5-10	395
	JR1812-271G	175	225	270	243-297	500A	5-10	455
	JR1812-391G	250	320	270	351-429	500A	5-10	650
	JR1812-431G	275	350	430	387-473	500A	5-10	710
	JR1812-471G	300	385	470	423-517	500A	5-10	775
	JR1812-511G	320	415	510	459-561	400A	5-10	845
	JR1812-221H	140	180	220	198-242	800A	5-10	360	2000V
	JR1812-241H	150	200	240	216-264	1000A	5-10	395
	JR1812-271H	175	225	270	243-297	1000A	5-10	455
	JR1812-391H	250	320	270	351-429	1000A	5-10	650
	JR1812-431H	275	350	430	387-473	1000A	5-10	710
	JR1812-471H	300	385	470	423-517	1000A	5-10	775
