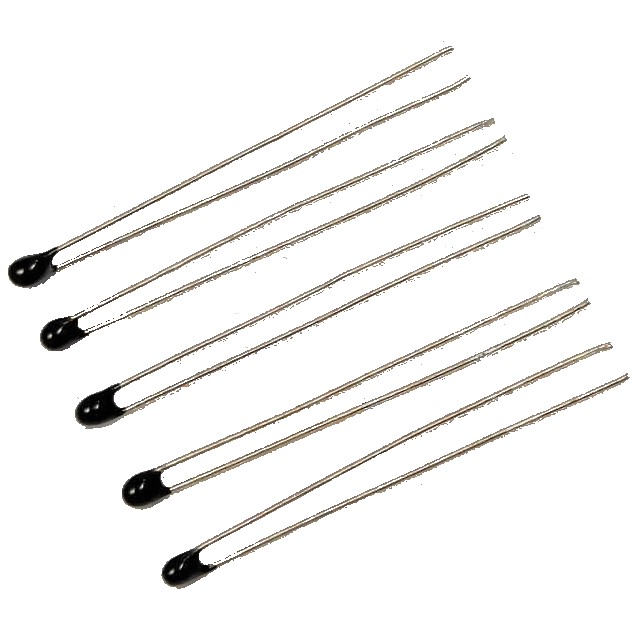

MF52A drop bead type epoxy resin package small precision NTC thermistor

Introduce

Compact size and fast response, ideal for precise temperature detection in space-constrained applications such as battery packs, home appliances, and medical electronics.

Inquiry

A^-A⁺

Parameter Inquiry

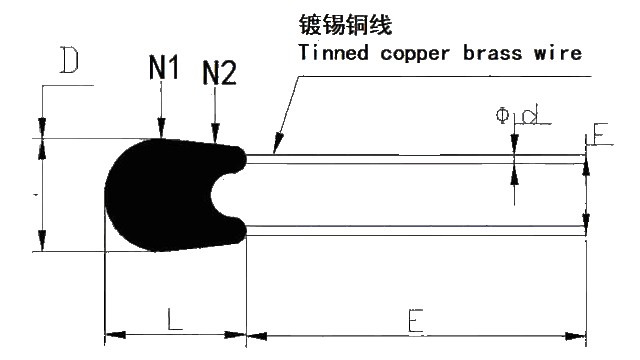

Unit	D	L	E	F	ϕOD	G
mm	2.2	3.2	30	2.0	0.38	/

FEATURES INTRODUCTION

1. MF52A series products are resin coating type for radial CP wire2.Wide resistance range:0.1~500KQ

2. High resistance and B value accuracy

3. High temperature measurement accuracy

4. Small size and fast response speed

5. High reliability

6. Can work stably for a long time

7. Operating temperature range-40~+120C

8. The shortest product can be 6mm(total length including head)

SCOPE OF APPLICATION

Electronic thermometers,electronic gifts,medical equipment,automobile temperature measurement,air conditioners,

refrigerators,freezers,soymilkmachines,electronic desk calendars,bread machines,water dispensers,rechargeable battery

packs,chargers,temperature control instruments,LED powersupplies
