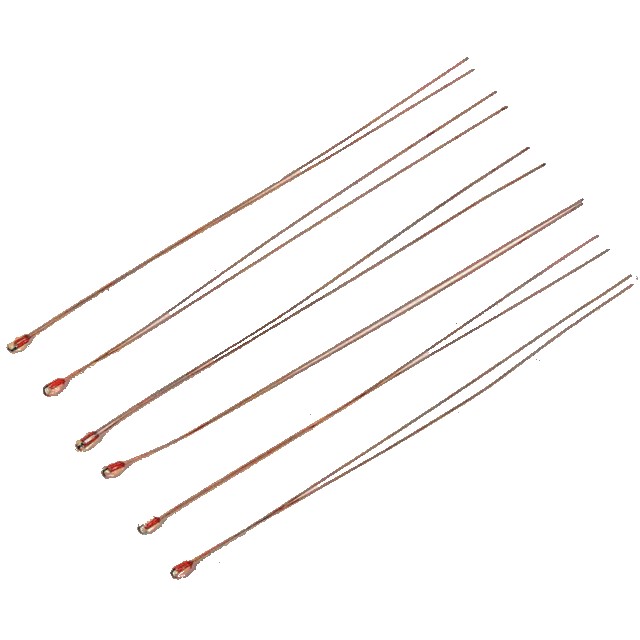

MF58D glass packaged radial lead precision NTC thermistor

Introduce

Offers high accuracy and linearity, ideal for power supply modules, sensor inputs, and high-reliability industrial control applications.

Inquiry

A^-A⁺

Parameter Inquiry

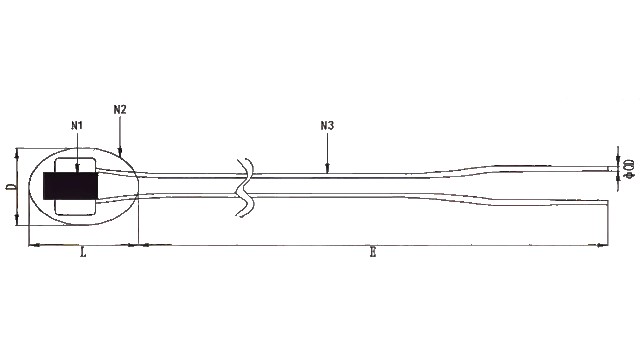

Unit	D	L	E	F	ϕOD	G
mm	1.8	2.5	62	/	0.2	/

FEATURES INTRODUCTION

1.MF58D series products are radial lead single-ended glass package type

2.Good stability and high reliability

3.Wide resistance range:1~2000KQ

4.Allowable temperatúre measurement error:0.2℃

5.Glass package,can be used in harsh environments such as high temperature andhigh humidity

6.Small size,easy to install automatically

7.Operating temperature range-40~+300℃

8.Fast heat induction and sensitive response 2S

9.The product can work at high temperature for a long time

SCOPE OF APPLICATION

Temperature control and detection of,food thermometers,induction cookers,electric pressure cookers,rice cookers,electric ovens,disinfection cabinets,waterdispensers,microwave ovens,and other household appliances

Temperature detection and temperature compensation of office automationequipment(such as copiers,printers,etc.)

Temperature control and testing of industrial,medical,environmental,meteorological,and food processing equipment 3D printers,printing pens,and other new energy industries

Temperature protection of rechargeable battery pack and charger
