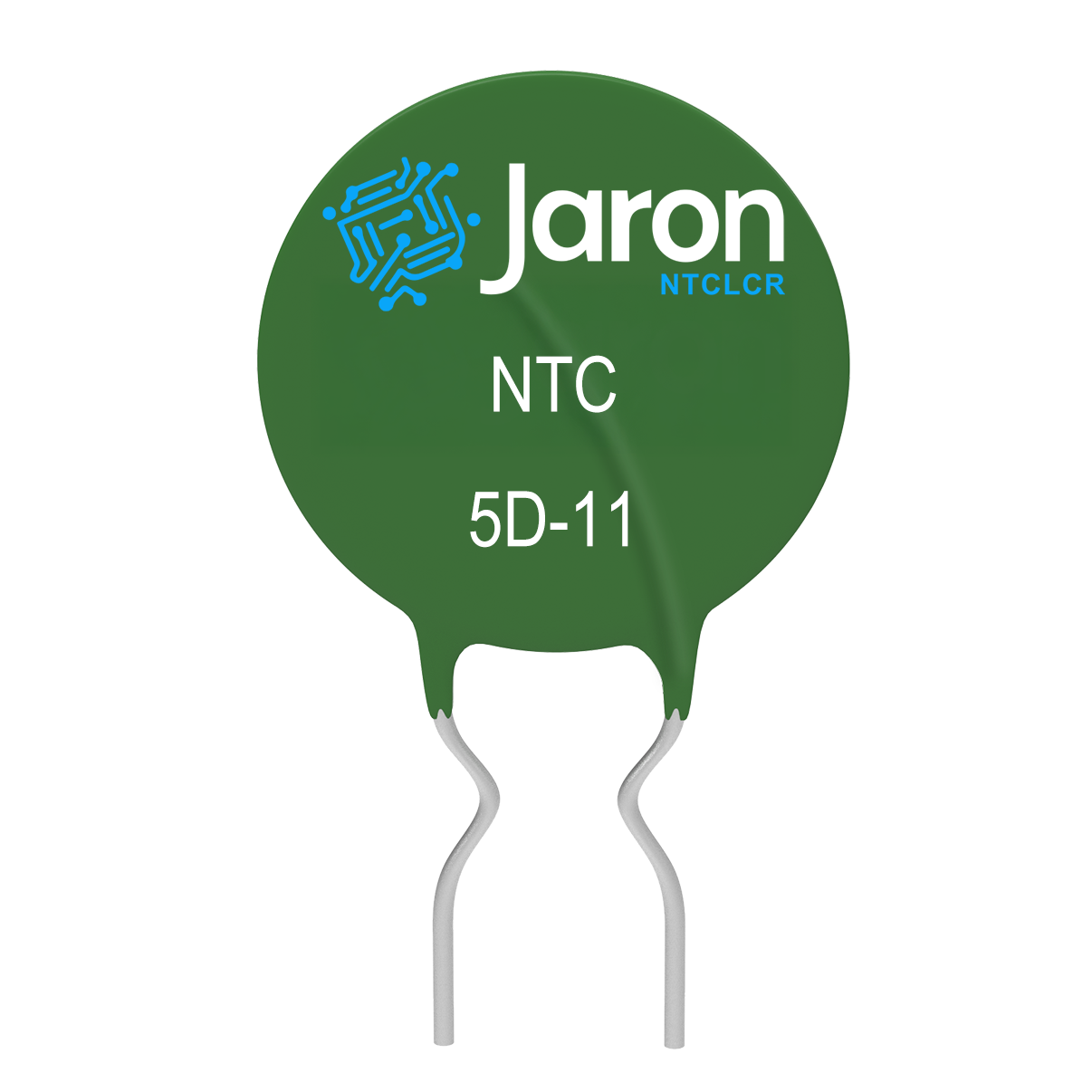

MF72-NTC**D-11 Series

Introduce

Designed for medium to high-power circuits, offering higher thermal capacity and better suppression effects. It is a recommended protection solution for industrial power supplies, monitors, and office equipment.

Inquiry

A^-A⁺

Parameter Inquiry

Part Number	Resistance at 25℃	Max. Permissible Working Curren	Resistance under Load	Dissipation Factor	Thermal Time Constan	Maximum permissible capacitance @240Vac
Part Number	R25 (Ω) ±20%	Imax (A)	(mΩ)	δ(mW/℃)	τ(Sec.)	C（uF）
MF72-NTC1D-11	1	5	95	12	45	220
MF72-NTC1.5D-11	1.5	5	95	13	43	220
MF72-NTC2.5D-11	2.5	5	95	13	43	220
MF72-NTC3D-11	3	5	126	13	45	220
MF72-NTC5D-11	5	4	156	13	45	220
MF72-NTC8D-11	8	3	255	14	47	220
MF72-NTC10D-11	10	3	275	14	47	220
MF72-NTC16D-11	16	2	470	14	50	220
MF72-NTC20D-11	20	2	613	14	52	220
