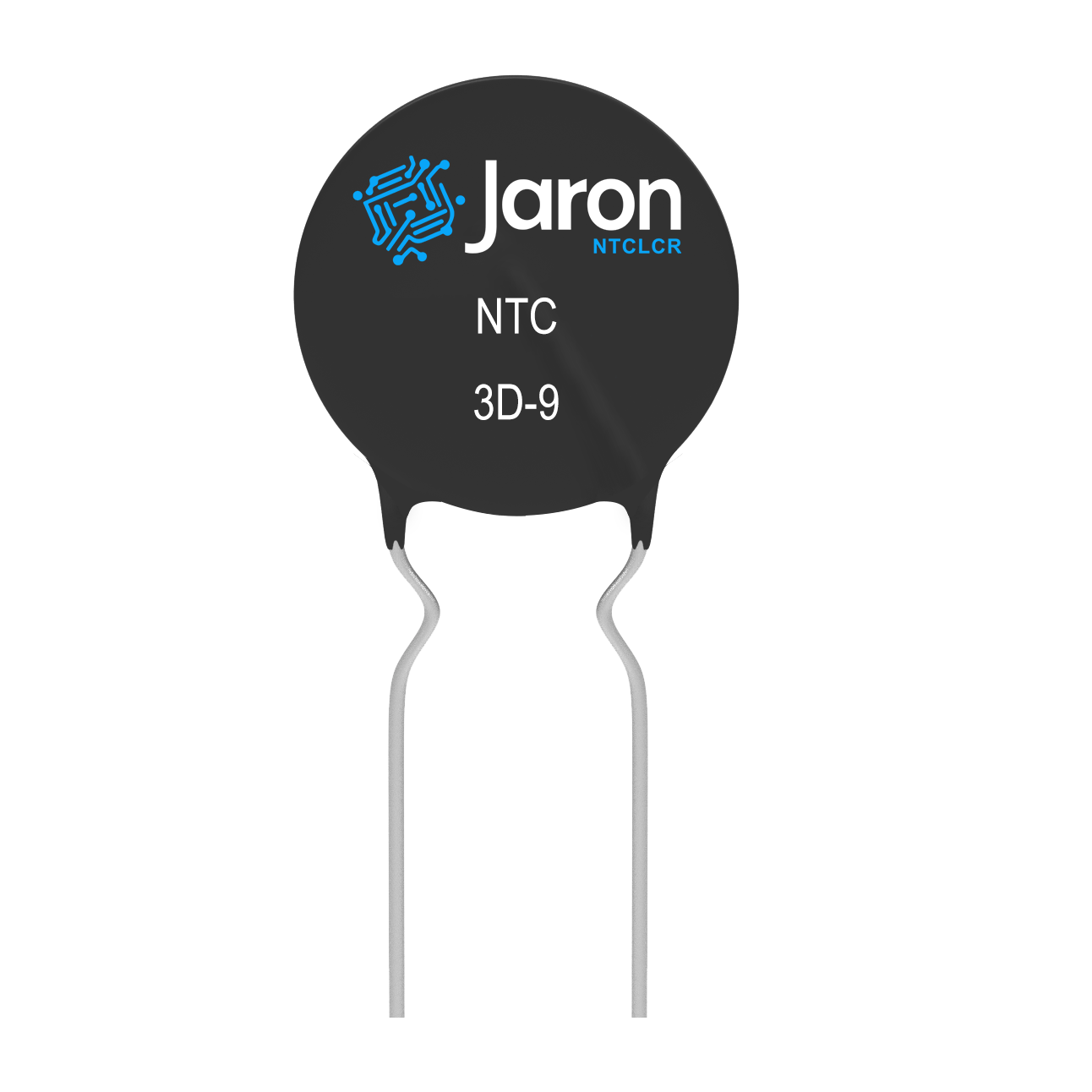

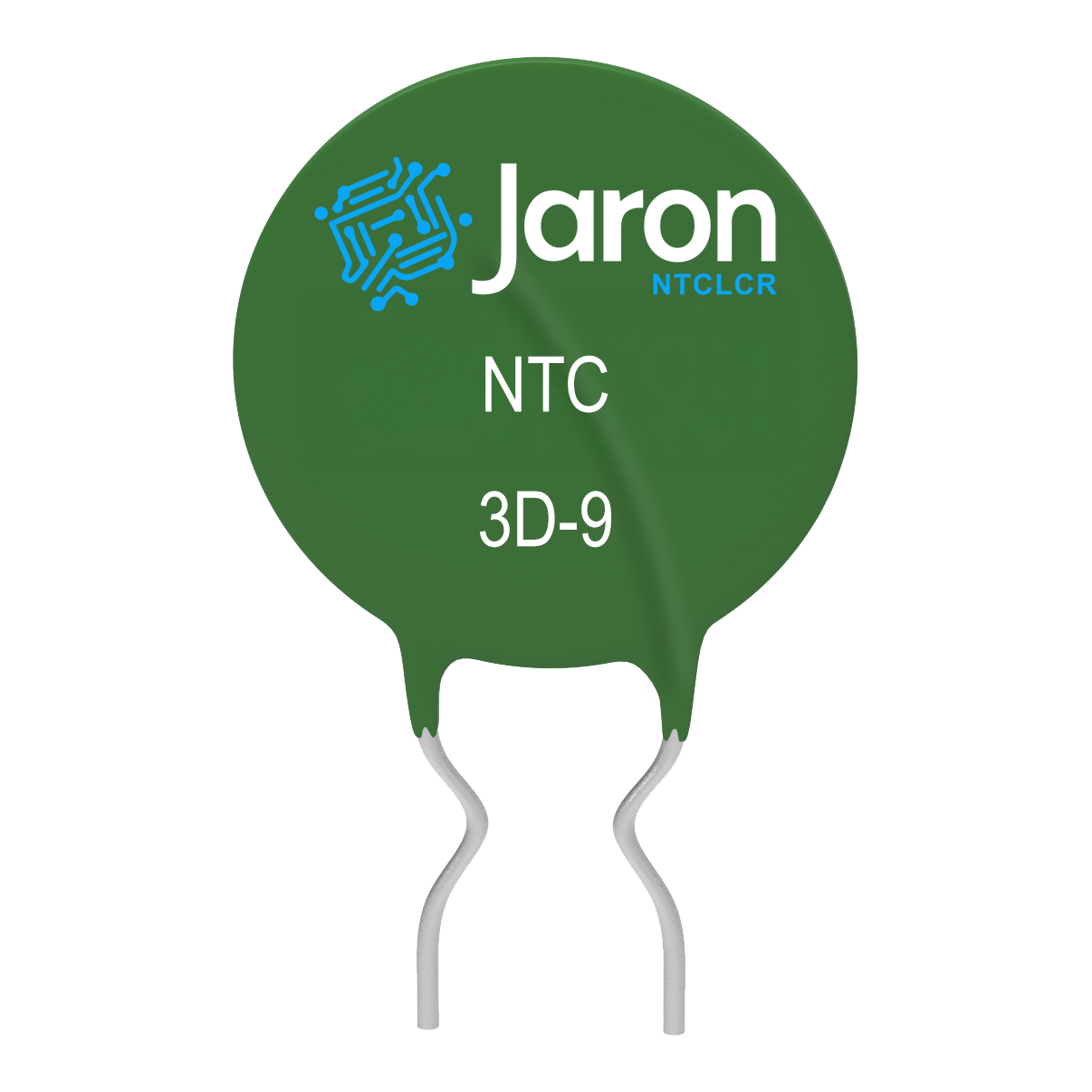

MF72-NTC**D-9 Series

Introduce

Provides stable current limiting for medium-power applications. The D-9 series is well-suited for TVs, audio systems, and power modules that require moderate surge protection.

Inquiry

A^-A⁺

Parameter Inquiry

Part Number	Resistance at 25℃	Max. Permissible Working Curren	Resistance under Load	Dissipation Factor	Thermal Time Constan	Maximum permissible capacitance @240Vac
Part Number	R25 (Ω) ±20%	Imax (A)	(mΩ)	δ(mW/℃)	τ(Sec.)	C（uF）
MF72-NTC2.5D-9	2.5	4	128	11	35	110
MF72-NTC3D-9	3	4	120	11	35	110
MF72-NTC5D-9	5	3	210	11	34	110
MF72-NTC8D-9	8	2	400	11	32	110
MF72-NTC10D-9	10	2	458	11	32	110
MF72-NTC16D-9	16	1	802	11	31	110
MF72-NTC22D-9	22	1	950	11	30	110
