LCRRSMD0603 Series

Parameter Inquiry

Part Number		Working Voltage		Breakdown Voltage		Peak Current	Clamping Voltage		Surge Voltage (V)
		AC	DC	@ 1mA DC		8/20uS	8/20uS
		VAC	V DC	VB		Ip	A	V
0603	JR0603-3R3G	1.4	2	3.0	2.4-3.6	20A	1	9	100V
	JR0603-5R0G	2.4	3.3	5	4.0-6.0	20A	1	12
	JR0603-8R0G	4	5.5	5.5	6.6-9.9	30A	1	18
	JR0603-120G	7	9	12	10.2-13.8	30A	1	24

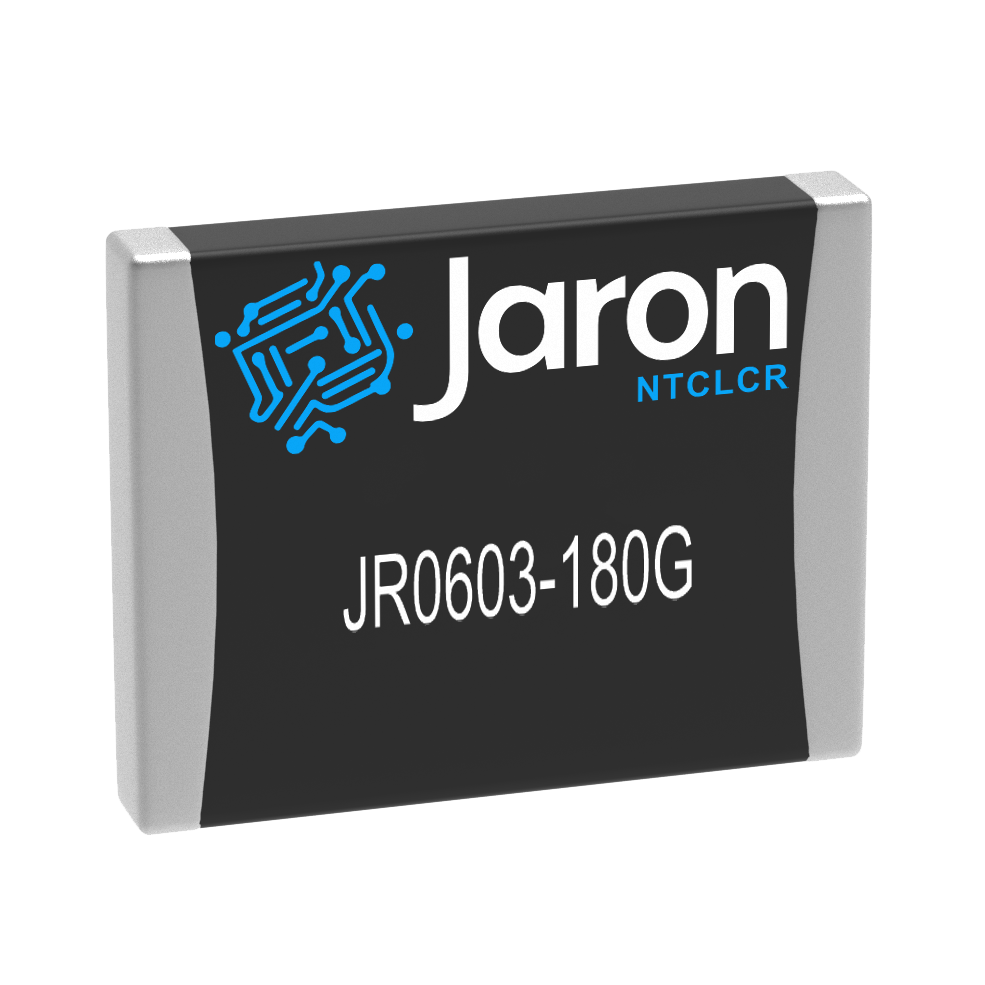

	JR0603-180G	11	14	18	15.3-21.7	30A	1-10	30
	JR0603-220G	12	16	22	19.8-24.2	30A	1-10	36
	JR0603-240G	14	18	24	21.6-26.4	30A	1-10	38
	JR0603-270G	17	22	27	24.3-29.7	30A	1-10	44
	JR0603-300G	18	24	30	27.2-33.0	30A	1-10	48
	JR0603-330G	20	26	33	29.7-36.3	30A	1-10	54
	JR0603-360G	22	28	36	32.7-39.6	30A	1-10	59
	JR0603-390G	25	30	39	35.1-42.9	30A	1-10	65
	JR0603-420G	26	33	42	38.1-46.2	30A	1-10	72
	JR0603-470G	30	38	47	42.3-51.7	30A	1-10	77
