LCRRSMD0805 Series

Parameter Inquiry

Part Number		Working Voltage		Breakdown Voltage		Peak Current	Clamping Voltage		Surge Voltage (V)
		AC	DC	@ 1mA DC		8/20uS	8/20uS
		VAC	V DC	VB		Ip	A	V
0805	JR0805-3R3G	1.4	2	3.0	2.4-3.6	80A	1-10	9	300V
	JR0805-5R0G	2.4	3.3	5	4.0-6.0	80A	1-10	12
	JR0805-8R0G	4	5.5	5.5	6.6-9.9	80A	1-10	18
	JR0805-120G	7	9	12	10.2-13.8	100A	1-10	24
	JR0805-180G	11	14	18	15.3-21.7	100A	1-10	30
	JR0805-220G	12	16	22	19.8-24.2	100A	1-10	36
	JR0805-240G	14	18	24	21.6-26.4	100A	1-10	38
	JR0805-270G	17	22	27	24.3-29.7	100A	1-10	44
	JR0805-300G	18	24	30	27.2-33.0	100A	1-10	48

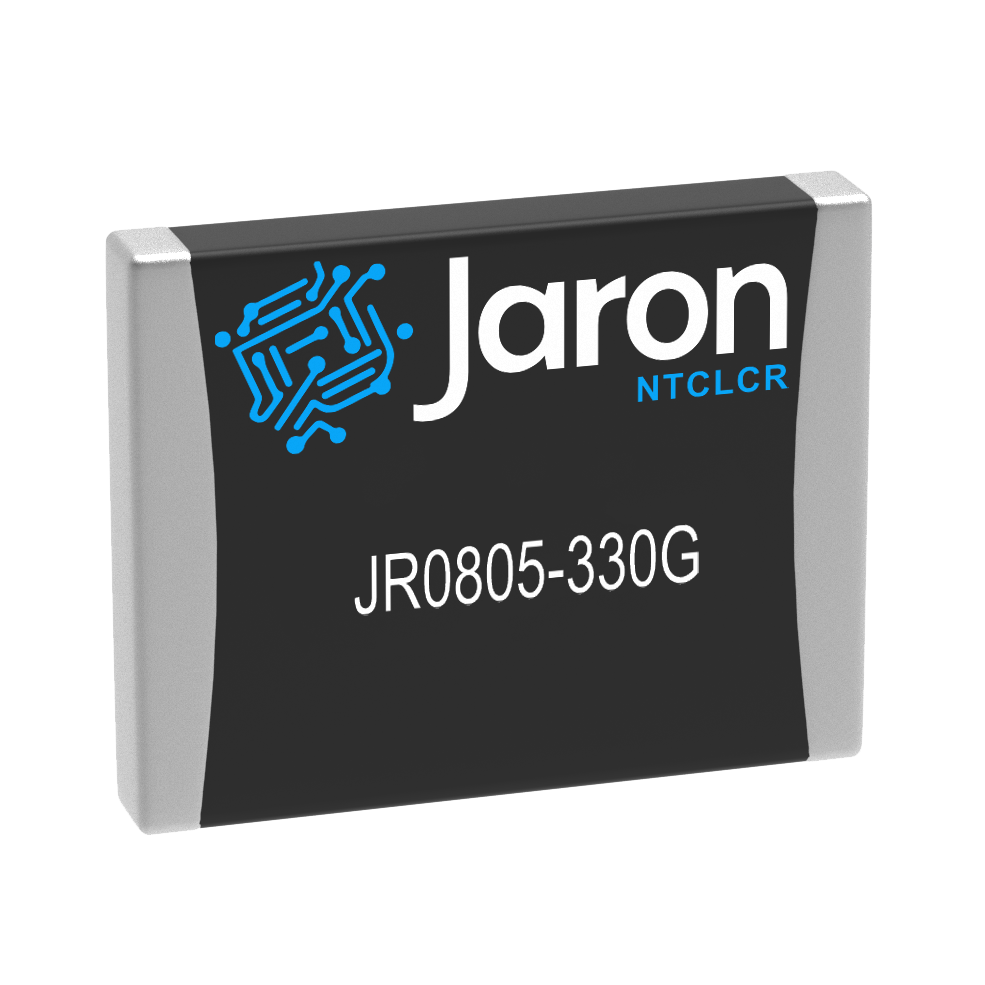

	JR0805-330G	20	26	33	29.7-36.3	100A	1-10	54
	JR0805-360G	22	28	36	32.7-39.6	100A	1-10	59
	JR0805-390G	25	30	39	35.1-42.9	100A	1-10	65
	JR0805-420G	26	33	42	38.1-46.2	100A	1-10	72
	JR0805-470G	30	38	47	42.3-51.7	100A	1-10	77
	JR0805-560G	35	45	56	50.4-61.6	80A	1-10	90
	JR0805-121G	75	100	120	108-132	80A	1-10	200	≥600V
	JR0805-171G	110	140	170	154-187	80A	1-10	300
	JR0805-201G	140	180	220	198-242	80A	1-10	360
	JR0805-241G	150	200	240	216-264	80A	1-10	395
	JR0805-271G	175	225	270	243-297	80A	1-10	455
	JR0805-361G	230	300	360	324-396	30A	1-10	595
	JR0805-391G	250	320	270	351-429	30A	5-10	650
	JR0805-431G	275	350	430	387-473	30A	5-10	710
	JR0805-471G	300	385	470	423-517	30A	5-10	775
