LCRRSMD3220 Series

Parameter Inquiry

Part Number		Working Voltage		Breakdown Voltage		Peak Current	Clamping Voltage		Surge Voltage (V)
		AC	DC	@ 1mA DC		8/20uS	8/20uS
		VAC	V DC	VB		Ip	A	V
3220 High V	JR3220-201G	130	170	200	185-225	500A	5-10	340	1000V
	JR3220-221G	140	180	220	198-242	500A	5-10	360
	JR3220-241G	150	200	240	216-264	500A	5-10	395
	JR3220-271G	175	225	270	243-297	500A	5-10	455
	JR3220-391G	250	320	270	351-429	500A	5-10	650
	JR3220-431G	275	350	430	387-473	450A	5-10	710
	JR3220-471G	300	385	470	423-517	450A	5-10	775

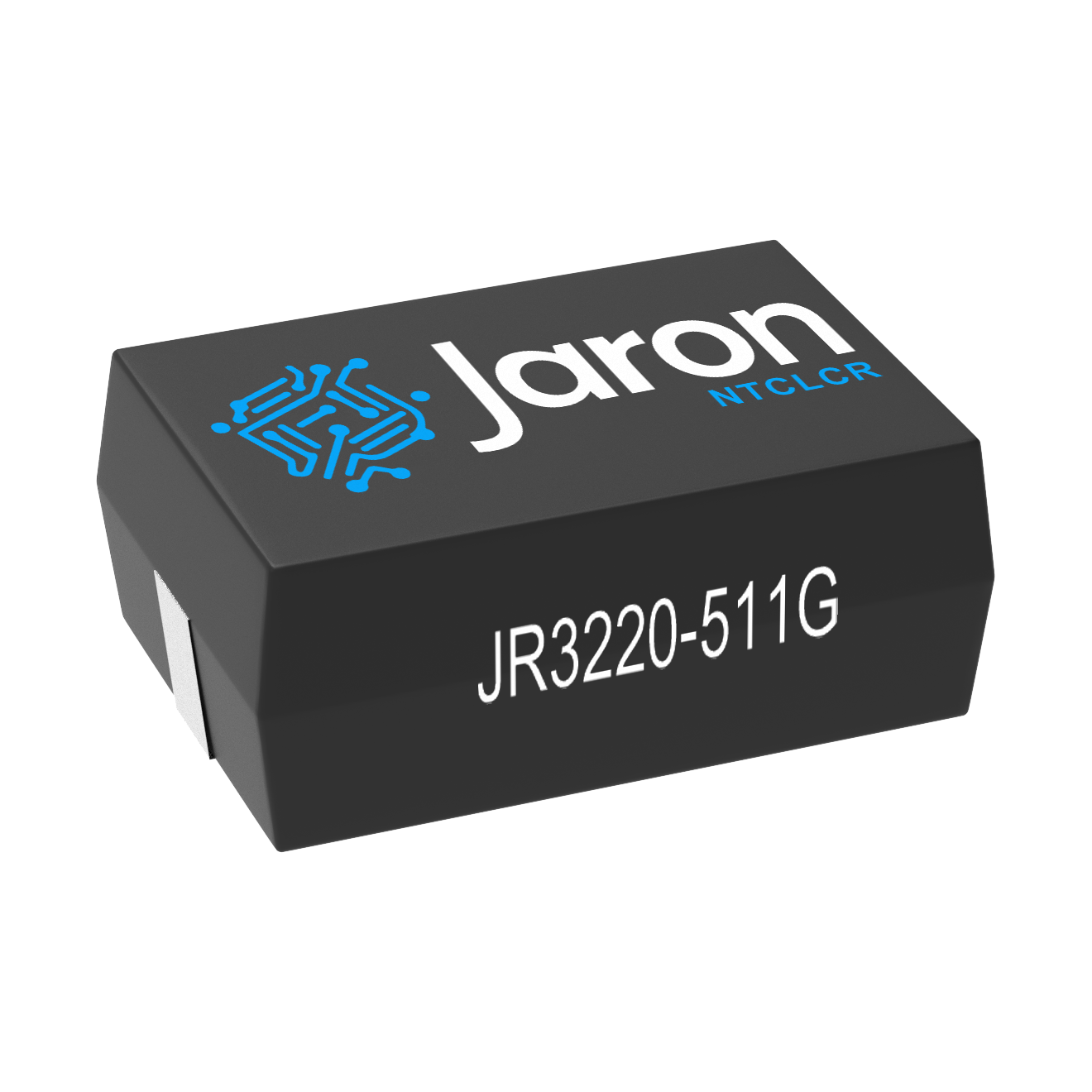

	JR3220-511G	320	415	510	459-561	450A	5-10	845
	JR3220-221H	140	180	220	198-242	800A	5-10	360	2000V
	JR3220-241H	150	200	240	216-264	1000A	5-10	395
	JR3220-271H	175	225	270	243-297	1000A	5-10	455
	JR3220-391H	250	320	270	351-429	1000A	5-10	650
	JR3220-431H	275	350	430	387-473	1000A	5-10	710
	JR3220-471H	300	385	470	423-517	1000A	5-10	775
	JR3220-511H	320	415	510	459-561	1000A	5-10	845
	JR3220-561H	350	460	620	558-682	1000A	5-10	920
	JR3220-471H152	300	385	470	423-517	1500A	5-20	710	3000V
	JR3220-471H302	300	385	470	423-517	3000A	5-20	710	6000V
