LCRRSMD1206 Series

Parameter Inquiry

LCRRSMD1206 Series

Part Number		Working Voltage		Breakdown Voltage		Peak Current	Clamping Voltage		Surge Voltage (V)
		AC	DC	@ 1mA DC		8/20uS	8/20uS
		VAC	V DC	VB		Ip	A	V
1206	JR1206-5R0G	2.4	3.3	5	4.0-6.0	100A/200A	1-10	12	≥500V
	JR1206-8R0G	4	5.5	5.5	6.6-9.9	100A/200A	1-10	18
	JR1206-120G	7	9	12	10.2-13.8	120A/200A	1-10	24

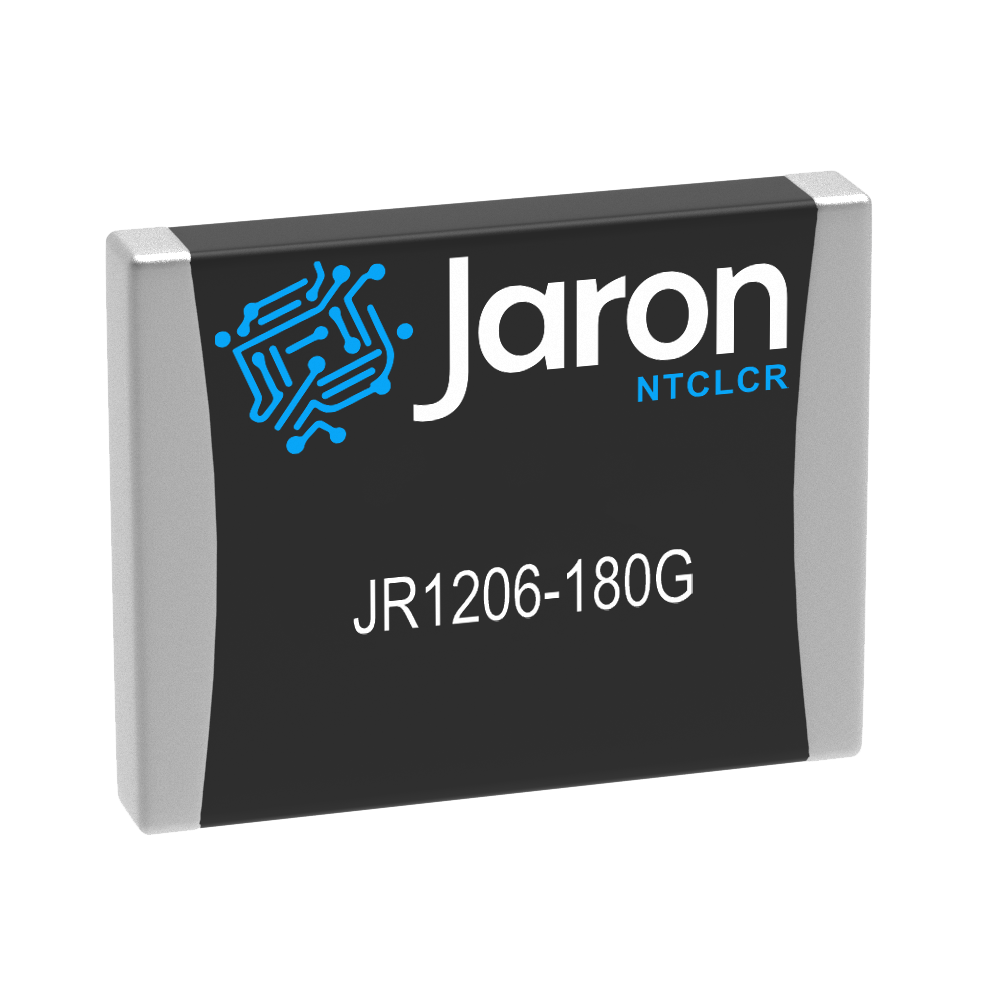

	JR1206-180G	11	14	18	15.3-21.7	120A/200A	1-10	30
	JR1206-220G	12	16	22	19.8-24.2	120A/200A	1-10	36
	JR1206-240G	14	18	24	21.6-26.4	120A/200A	1-10	38
	JR1206-270G	17	22	27	24.3-29.7	120A/200A	1-10	44
	JR1206-300G	18	24	30	27.2-33.0	120A/200A	1-10	48
	JR1206-330G	20	26	33	29.7-36.3	120A/200A	1-10	54
	JR1206-360G	22	28	36	32.7-39.6	120A/200A	1-10	59
	JR1206-390G	25	30	39	35.1-42.9	120A/200A	1-10	65
	JR1206-420G	26	33	42	38.1-46.2	120A/200A	1-10	72
	JR1206-470G	30	38	47	42.3-51.7	120A/200A	1-10	77
	JR1206-560G	35	45	56	50.4-61.6	120A/200A	1-10	90
	JR1206-680G	40	56	68	61.2-74.8	120A/200A	1-10	110
	JR1206-760G	45	60	76	69.1-83.6	120A/200A	1-10	126
	JR1206-820G	50	65	82	73.8-90.2	120A/200A	1-10	135
	JR1206-101G	60	85	100	90-110	100A/200A	1-10	165

LCRRSMD1206 High Voltage Series

Part Number		Working Voltage		Breakdown Voltage		Peak Current	Clamping Voltage		Surge Voltage (V)
		AC	DC	@ 1mA DC		8/20uS	8/20uS
		VAC	V DC	VB		Ip	A	V
1206 High	JR1206-121G	75	100	120	108-132	200A	1-10	200	≥600V
	JR1206-171G	110	140	170	154-187	200A	1-10	300
	JR1206-201G	130	170	200	185-225	200A	1-10	340
	JR1206-221G	140	180	220	198-242	200A	1-10	360
	JR1206-241G	150	200	240	216-264	200A	1-10	395
	JR1206-271G	175	225	270	243-297	200A	1-10	455
	JR1206-391G	250	320	270	351-429	200A	1-10	650
	JR1206-431G	275	350	430	387-473	200A	1-10	710
	JR1206-471G	300	385	470	423-517	100A	1-10	775
	JR1206-391H	250	320	270	351-429	350A	1-10	650	≥1000V
	JR1206-431H	275	350	430	387-473	350A	1-10	710	≥1000V
