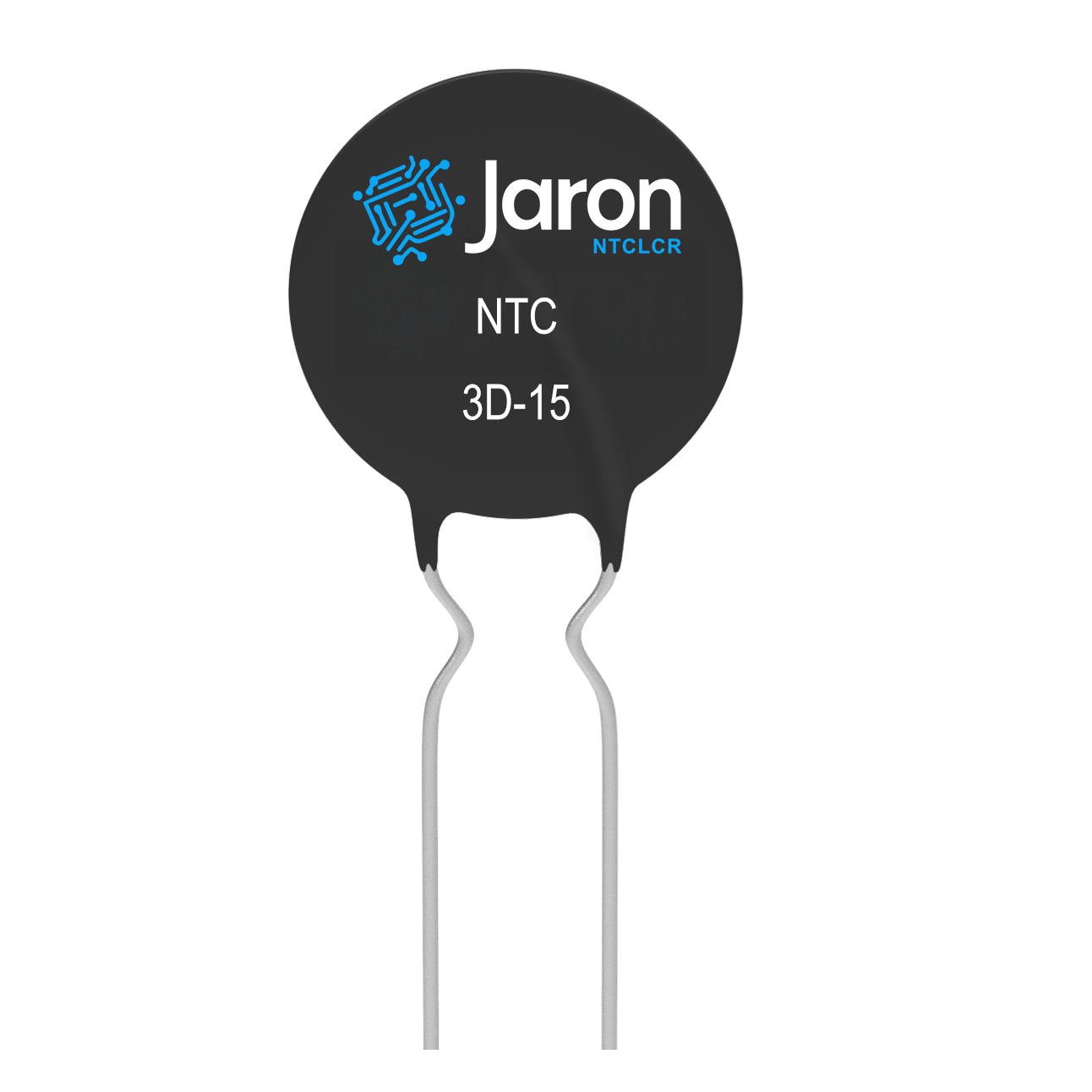

MF72-NTC**D-15 Series

Introduce

Engineered for environments with large inrush currents. The D-15 series provides efficient startup protection in inverters, industrial automation systems, and variable frequency drives.

Inquiry

A^-A⁺

Parameter Inquiry

Part Number	Resistance at 25℃	Max. Permissible Working Curren	Resistance under Load	Dissipation Factor	Thermal Time Constan	Maximum permissible capacitance @240Vac
Part Number	R25 (Ω) ±20%	Imax (A)	(mΩ)	δ(mW/℃)	τ(Sec.)	C（uF）
MF72-NTC1.5D-15	1.5	8	52	19	69	470
MF72-NTC2.5D-15	2.5	7	62	21	85	470
MF72-NTC3D-15	3	7	75	18	76	470
MF72-NTC5D-15	5	6	112	20	76	470
MF72-NTC8D-15	8	5	178	20	80	470
MF72-NTC10D-15	10	5	180	20	75	470
MF72-NTC15D-15	15	4	268	21	85	470
MF72-NTC18D-15	18	3.5	100	21	85	470
MF72-NTC20D-15	20	3.5	287	20	80	470
MF72-NTC30D-15	30	3.5	438	21	75	470
MF72-NTC47D-15	47	3	680	21	86	470
