MF72-0402 Series

Parameter Inquiry

Part No	Resistance (25℃) (kΩ)	B Constant (25/50℃) (K)	B Constant (25/85℃) (K)	Permissible Operating Current (25℃) (mA)	Dissipation Factor (mW/℃)	Thermal Time Constant (s)	Rated Electric Power (25℃) (mW)	Operating ambient temperature (℃)
JR0402N472F3950FB	4.7	3950	3987	0.46	1	<3	100	-40~+125
JR0402N682F3950FB	6.8	3950	3987	0.38
JR0402N103F3380FB	10	3380	3435	0.31
JR0402N103F3435FA	10	3380	3435	0.31
JR0402N103F3450FB	10	3450	3500	0.31

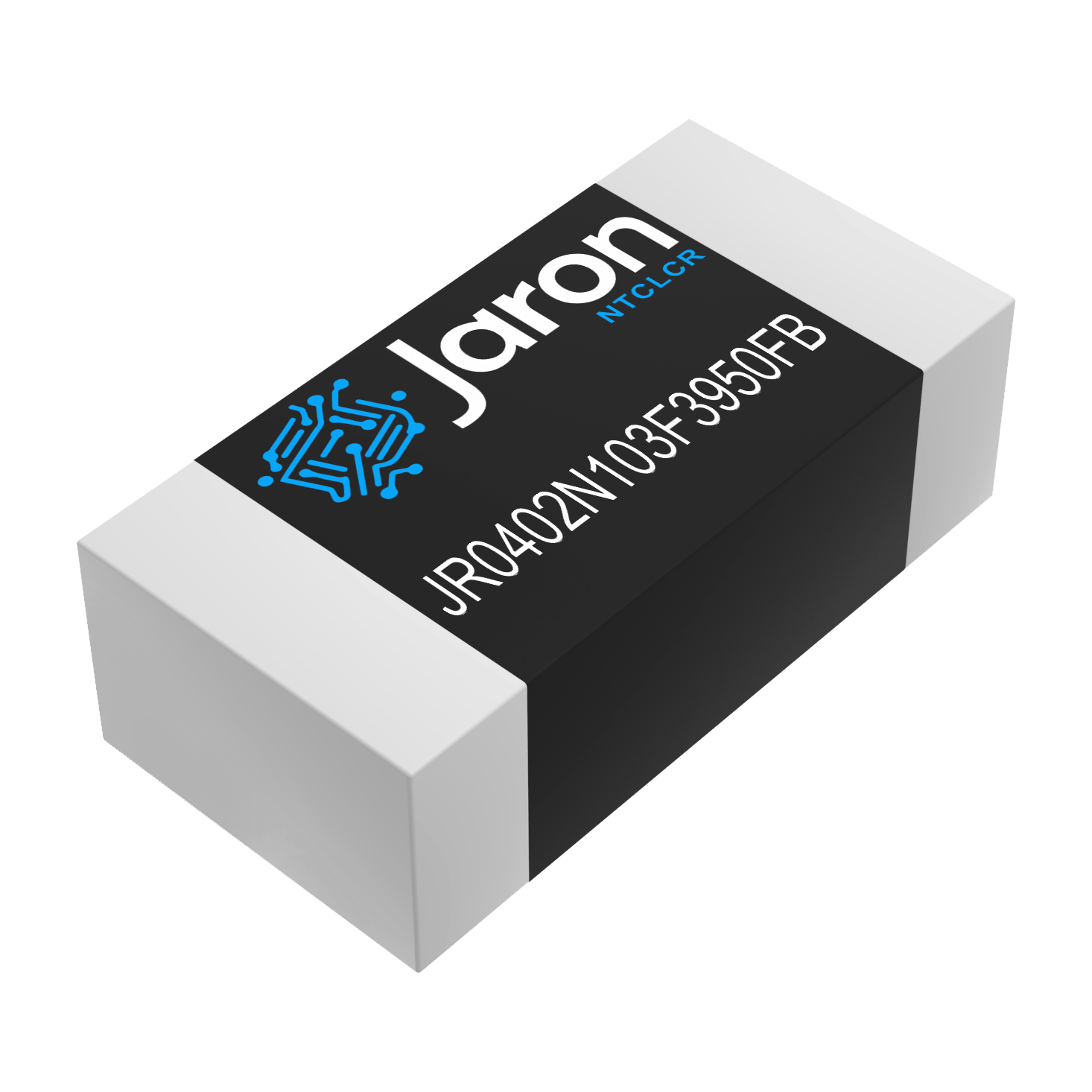

JR0402N103F3950FB	10	3950	3987	0.31
JR0402N103F4050FB	10	4050	4110	0.31
JR0402N153F3450FB	15	3450	3500	0.25
JR0402N223F3950FB	22	3950	3987	0.21
JR0402N223F4050FB	22	4050	4100	0.21
JR0402N303F3950FB	30	3950	3987	0.17
JR0402N303F4050FB	30	4050	4110	0.17
JR0402N333F3950FB	33	3950	3987	0.17
JR0402N333F4050FB	33	4050	4100	0.17
JR0402N333F4050FB	33	4050	4110	0.17
JR0402N473F4050FB	47	4050	4100	0.14
JR0402N473F4100FB	47	4100	4100	0.14
JR0402N503F4100FB	50	4100	4150	0.14
JR0402N683F4150FB	68	4150	4210	0.12
JR0402N104F3950FB	100	3950	3987	0.1
JR0402N104F4150FB	100	4150	4210	0.1
JR0402N104F4250FB	100	4250	4310	0.1
JR0402N154F4150FB	150	4150	4210	0.08
JR0402N204F4250FB	200	4250	4310	0.06
JR0402N224F4250FB	220	4250	4310	0.06
JR0402N474F4050FA	470	4000	4050	0.04
