MF72-0603 Series

Parameter Inquiry

Part No	Resistance (25℃) (kΩ)	B Constant (25/50℃) (K)	B Constant (25/85℃) (K)	Permissible Operating Current (25℃) (mA)	Dissipation Factor (mW/℃)	Thermal Time Constant (s)	Rated Electric Power (25℃) (mW)	Operating ambient temperature (℃)
JR0603N101F3380FB	0.1	3380	3450	3.1	1	<5	100	-40~+125
JR0603N151F3380FB	0.15	3380	3435	2.5
JR0603N221F3450FB	0.22	3450	3500	2.1
JR0603N331F3450FB	0.33	3450	3500	1.7
JR0603N471F3450FB	0.47	3450	3500	1.4
JR0603N681F3450FB	0.68	3450	3500	1.2
JR0603N102F3200FB	1	3200	3250	1
JR0603N102F3450FB	1	3450	3500	1
JR0603N152F3450FB	1.5	3450	3500	0.81
JR0603N222F3950FB	2.2	3950	3987	0.67
JR0603N302F3950FB	3	3950	3987	0.55
JR0603N332F3950FB	3.3	3950	3987	0.55
JR0603N472F3500FB	4.7	3500	3545	0.44

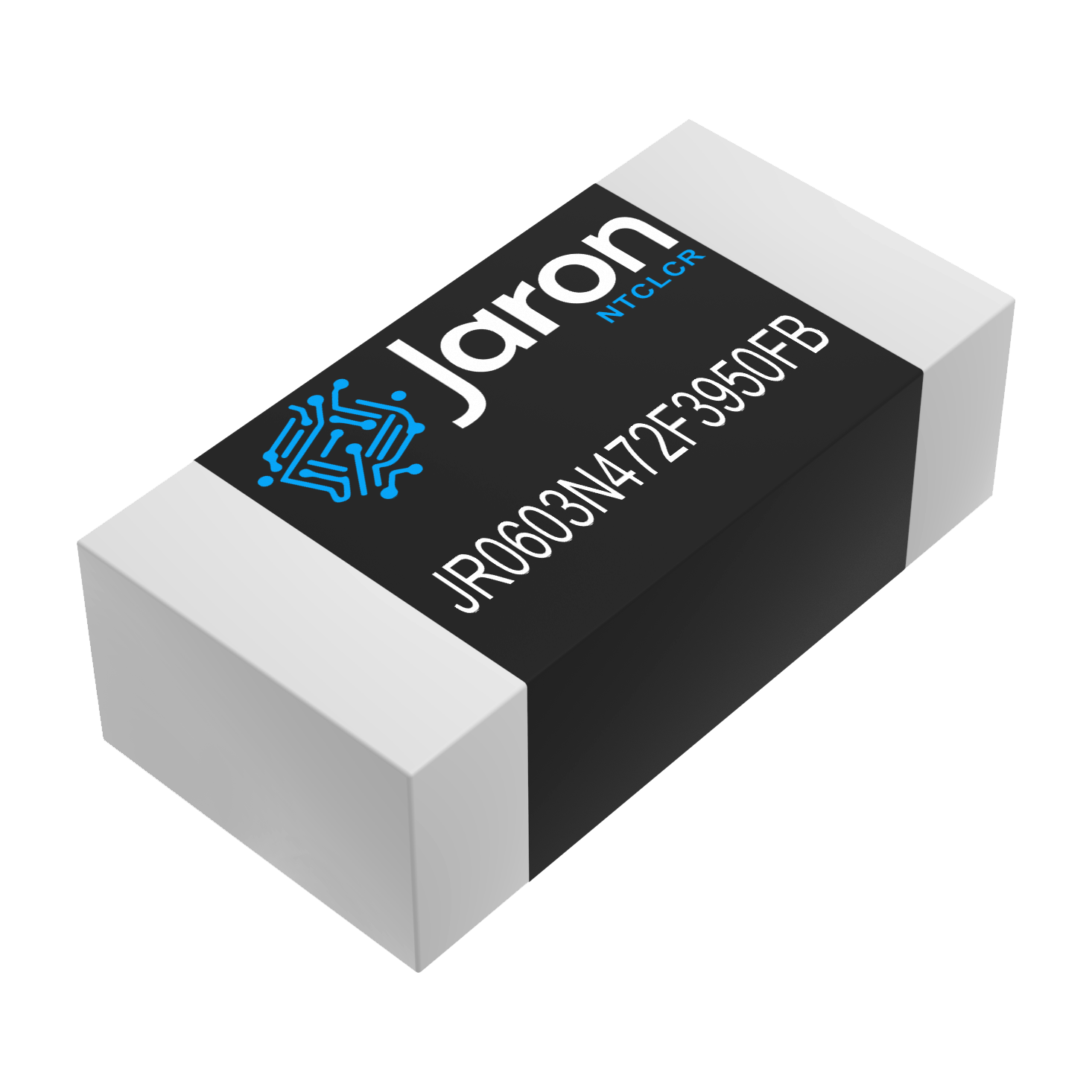

JR0603N472F3950FB	4.7	3950	3987	0.44
JR0603N502F3950FB	5	3950	3987	0.44
JR0603N682F3950FB	6.8	3950	3987	0.38
JR0603N103F3435FB	10	3380	3435	0.31
JR0603N103F3450FB	10	3450	3500	0.31
JR0603N103F3950FB	10	3950	3987	0.31
JR0603N153F3950FB	15	3950	3987	0.25
JR0603N223F3950FB	22	3950	3987	0.21
JR0603N223F3950FB	22	3950	3987	0.21
JR0603N223F4050FB	22	4050	4110	0.21
