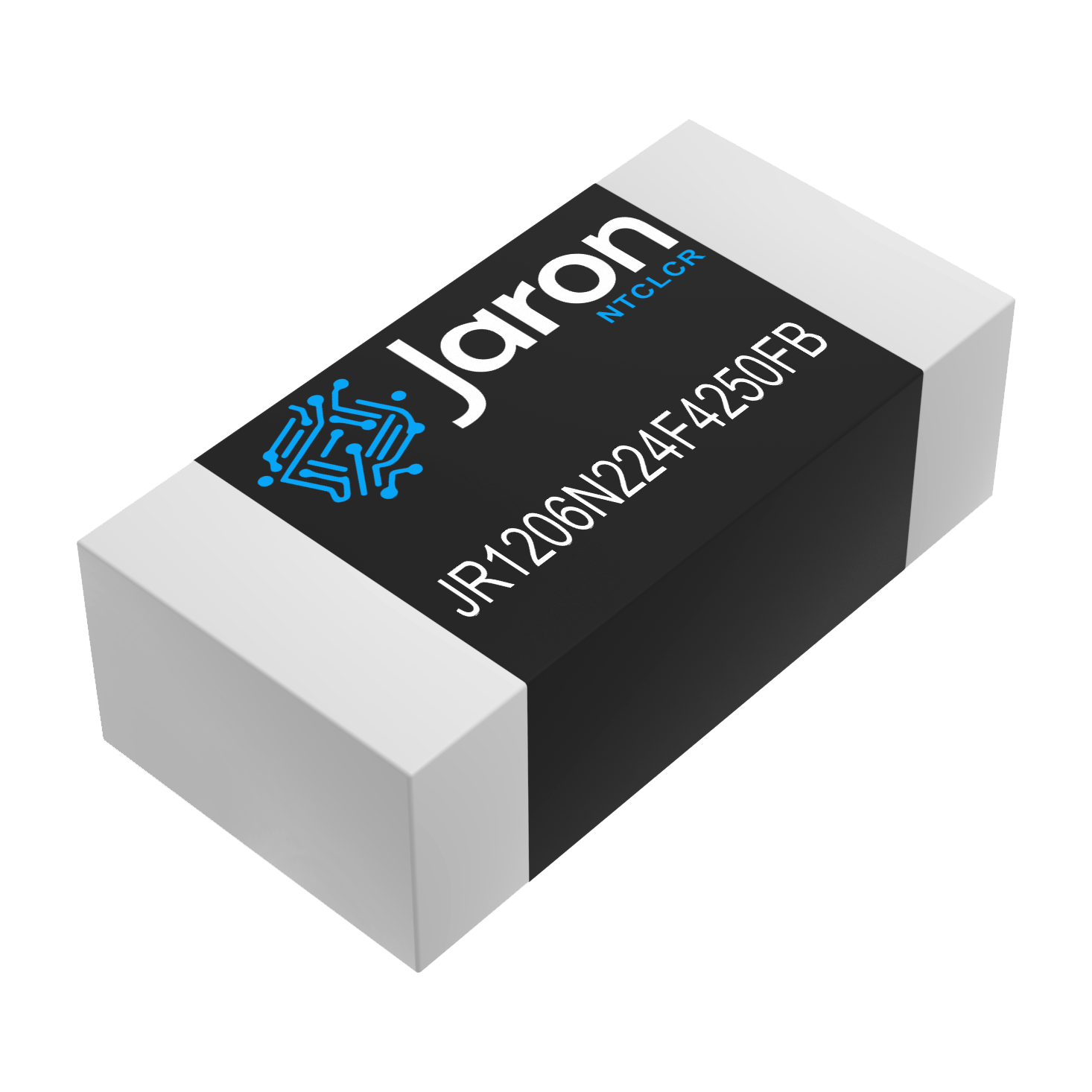

MF72-1206 Series

Parameter Inquiry

Part No	Resistance (25℃) (kΩ)	B Constant (25/50℃) (K)	B Constant (25/85℃) (K)	Permissible Operating Current (25℃) (mA)	Dissipation Factor (mW/℃)	Thermal Time Constant (s)	Rated Electric Power (25℃) (mW)	Operating ambient temperature (℃)
JR1206N103F3435FB	10	3435	3500	0.66	3.0	<8	200	-40~+125
JR1206N103F3950FB	10	3950	3987	0.66
JR1206N223F3950FB	22	3950	3987	0.6
JR1206N223F4050FB	22	4050	4110	0.6
JR1206N333F3950FB	33	3950	3987	0.55
JR1206N473F3950FB	47	3950	3987	0.48
JR1206N473F4050FB	47	4050	4110	0.48
JR1206N104F3950FB	100	3950	3987	0.21
JR1206N104F4050FB	100	4050	4110	0.21
JR1206N104F4250FB	100	4250	4310	0.21
JR1206N224F3950FB	220	3950	3987	0.18
JR1206N224F4250FB	220	4250	4100	0.18
JR1206N334F3950FB	330	3950	3987	0.18
JR1206N334F4250FB	330	4250	4310	0.18
JR1206N474F3950FB	470	3950	3987	0.15
JR1206N474F4250FB	470	4250	4310	0.12
